Value Collection RNYDS2-4 Ring Terminal 16-14 Awg Crimp 100pk

Product Description

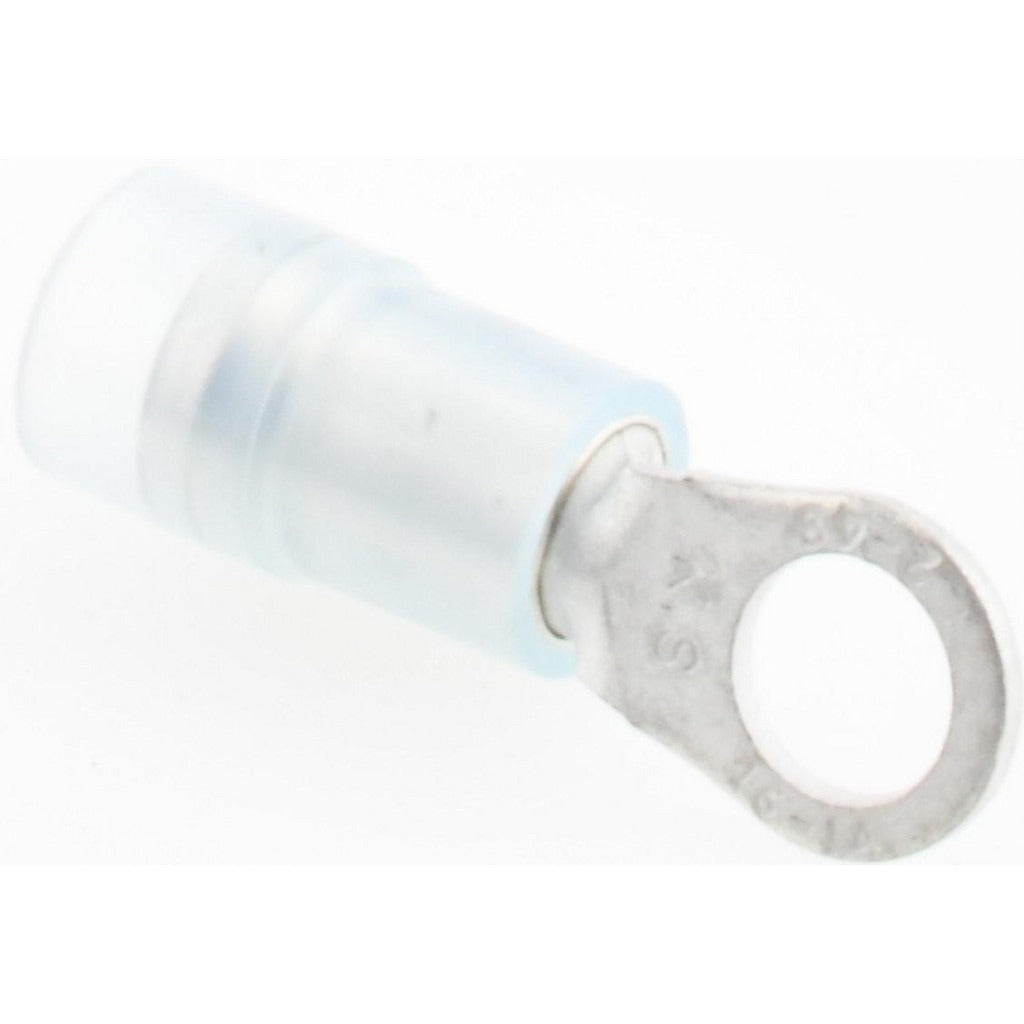

The VALUE COLLECTION RNYDS2-4 is a partially insulated circular ring terminal designed for reliable crimp connections in low-voltage wiring applications. It accepts 16 to 14 AWG wire (1.50 to 2.50 sq mm) and fits a No. 8 stud (M4, 4.30 mm). The copper contact body features a TiN (titanium nitride) plating for corrosion resistance and conductivity. A blue nylon insulation sleeve provides partial coverage at the barrel end, giving the installer a clear visual indicator for this AWG range. Overall length is 0.803 inches, with a ring width of 0.260 inches and a contact thickness of 0.031 inches. Electricians, HVAC technicians, and control-panel assemblers install this terminal wherever a secure, compact ring lug is required at a screw or stud termination point.

This terminal is suited for residential and light commercial wiring tasks including control wiring, panel connections, grounding runs, and equipment bonding. The No. 8 stud size is common on terminal blocks, grounding bars, and equipment chassis screws in HVAC, electrical, and light industrial applications. The blue color coding follows standard industry convention for 16 to 14 AWG terminals, making wire-range identification fast during installation. This listing is sold as a package of 100 terminals.

Key Features

• Accepts 16 to 14 AWG wire (1.50 to 2.50 sq mm) with a crimp-style connection
• Fits No. 8 stud (M4, 4.30 mm) for compatibility with common equipment and panel hardware
• Copper contact with TiN plating for corrosion resistance and stable conductivity
• Blue nylon partial insulation sleeve for AWG-range identification and barrel protection
• Compact profile: 0.803 inches overall length, 0.260 inches ring width, 0.031 inches contact thickness
• Sold in a 100-piece package to support production and service-volume needs

Compatibility

Designed for use with 16 to 14 AWG copper conductors terminated at No. 8 or M4 studs and screws in standard electrical, HVAC control, and light industrial wiring applications.

Installation Notes

Installation should be performed by a qualified electrician or HVAC technician in accordance with NEC requirements for the applicable circuit. De-energize and lock out the circuit before terminating or replacing any ring terminal. Use a ratcheting crimp tool rated for the AWG range and terminal type to achieve a proper mechanical crimp — do not rely on solder alone on a crimp-style terminal. Inspect the insulation sleeve after crimping to confirm no cracking or displacement before torquing down the stud fastener.
