Value Collection RNYD5-8 Ring Terminal 12-10 Awg 50-pack

Product Description

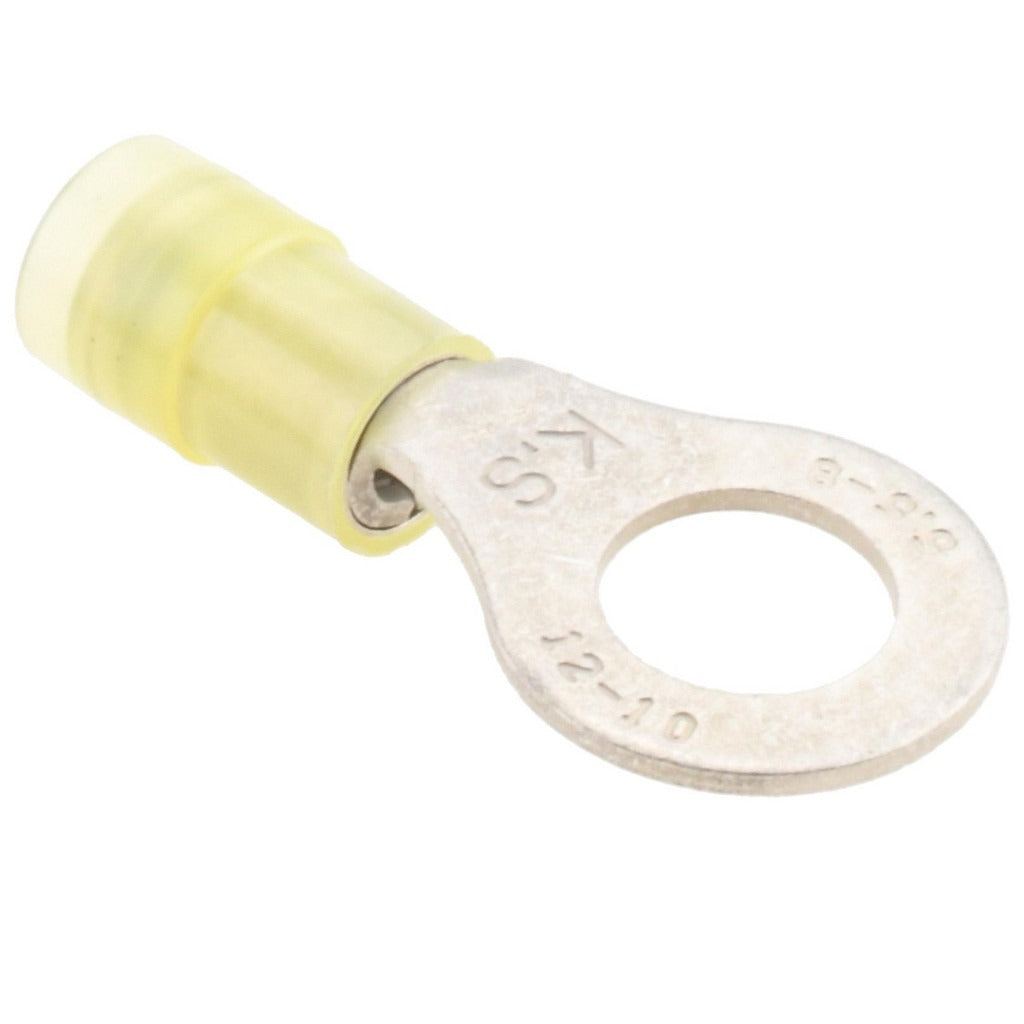

The VALUE COLLECTION RNYD5-8 is a partially insulated circular ring terminal designed for crimped electrical connections on 12 to 10 AWG copper conductors. The terminal body is constructed from copper with a TiN contact plating for reliable conductivity and corrosion resistance. A yellow nylon insulation sleeve partially covers the barrel, providing visual identification for 12 to 10 AWG wire gauge range and protecting the crimp zone. At 1.339 inches in overall length and 0.591 inches in ring width, this terminal accepts a 5/16 inch stud and installs without soldering. Electricians and panel technicians use these terminals for panel wiring, equipment grounding, and control circuit terminations.

These ring terminals are suited for residential and light commercial electrical installations where wire-to-stud connections are required. Typical applications include motor control panels, electrical enclosures, power distribution terminals, and grounding connections. The 5/16 inch stud size and 12 to 10 AWG wire compatibility make them a standard fit for general-purpose branch circuit and control wiring terminations. This listing is for a package of 50 terminals, appropriate for production wiring tasks or service van restocking.

Key Features

• Partially insulated nylon sleeve in yellow for AWG range identification
• Crimp connection type — no soldering required
• Copper contact with TiN plating for conductivity and corrosion resistance
• Fits 5/16 inch stud diameter (M8)
• Compatible with 12 to 10 AWG wire (4.00 to 6.00 sq mm)
• Sold in a package of 50 terminals

Compatibility

Designed as a standard replacement or general-use crimp ring terminal for 12 to 10 AWG conductors requiring a 5/16 inch stud connection in residential and commercial electrical applications.

Installation Notes

Installation is performed by licensed electricians or qualified technicians. De-energize the circuit and verify zero voltage with a meter before terminating any conductors. Use a ratcheting or calibrated crimp tool rated for the wire gauge and terminal series to ensure a gas-tight crimp. NEC guidelines for conductor terminations apply to all permanent installations.
