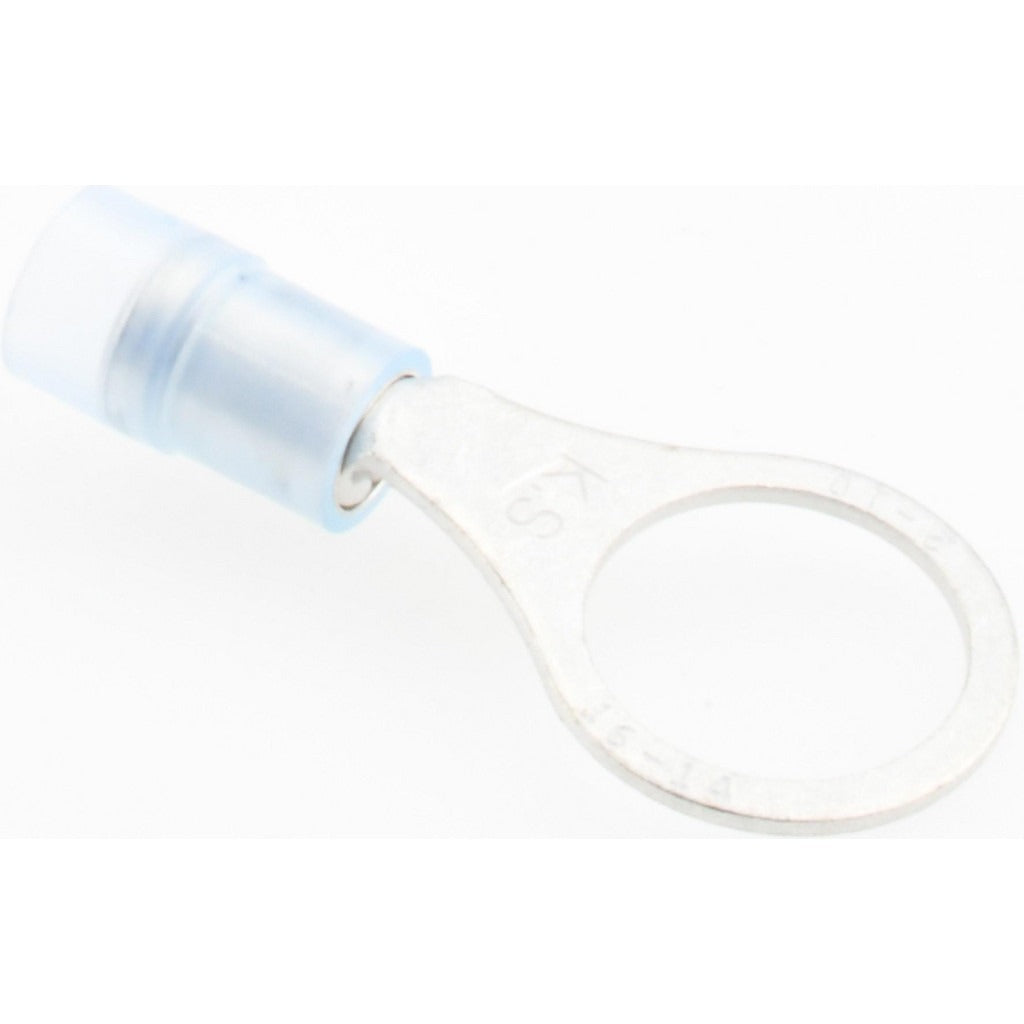

Value Collection RNYD2-10 Ring Terminal 16-14 Awg 100 Pack

Product Description

The VALUE COLLECTION RNYD2-10 is a partially insulated circular ring terminal designed for secure crimp connections on 16 to 14 AWG copper conductors. The terminal body measures 1.24 inches in overall length and 0.535 inches in ring width, with a copper contact plated in TiN (titanium nitride) for improved corrosion resistance and contact durability. The nylon insulation sleeve provides a partial barrier at the wire entry point, reducing abrasion risk at the crimp zone. Electricians and panel technicians use these terminals when terminating branch circuit wiring, control wiring, and low-voltage runs to ring-stud connections.

This terminal is suited for use in residential and light commercial electrical installations, control panels, HVAC equipment wiring, and equipment grounding applications. The 3/8-inch (M10) stud size accommodates common lug bolt and ground bus configurations. The blue color coding follows standard industry convention for the 16 to 14 AWG wire range, allowing for quick visual confirmation during panel assembly and inspection. Each package contains 100 terminals, making it practical for service vans and panel shops maintaining ready inventory.

Key Features

• Partially insulated nylon sleeve reduces abrasion and provides wire entry protection at the crimp point
• Copper contact with TiN plating for corrosion resistance and reliable conductivity
• Compatible with 16 to 14 AWG wire (1.50 to 2.50 sq mm)
• 3/8-inch (M10) stud size fits standard lug bolts and ground bus studs
• Blue color coding follows industry-standard AWG range identification
• Crimp connection type for fast, consistent termination without soldering

Compatibility

Designed for crimp termination of 16 to 14 AWG conductors to 3/8-inch or M10 ring-stud connections in residential and commercial electrical, control panel, and HVAC equipment wiring applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit completely before terminating or disturbing any wiring. Use a calibrated ratcheting crimp tool sized for the 16 to 14 AWG range to achieve a proper crimp — do not use pliers or uncalibrated tools, as an improper crimp can result in high-resistance connections or pull-out failure. Inspect each terminal after crimping for deformation, exposed conductor, or insulation damage before completing the installation.
