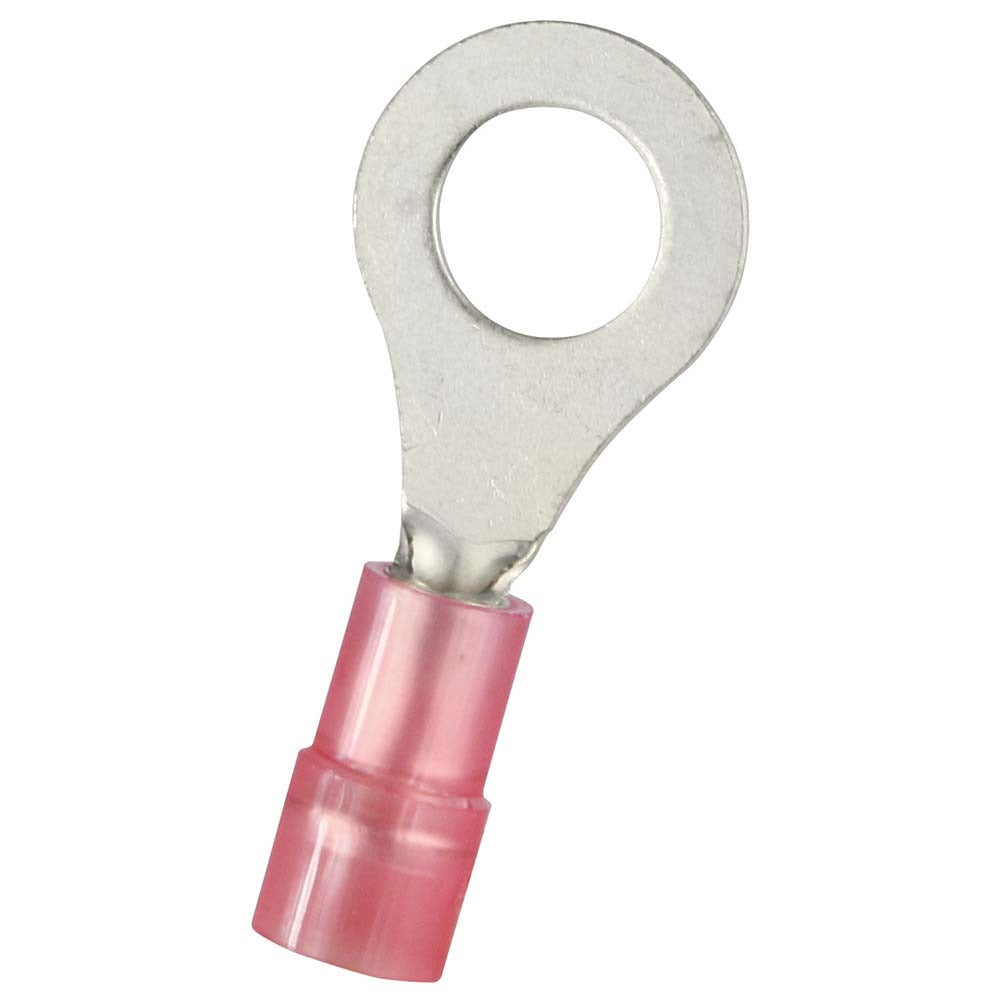

Value Collection RNYD1-6 Ring Terminal 22-16 Awg Crimp 100pk

Product Description

The VALUE COLLECTION RNYD1-6 is a partially insulated circular ring terminal designed for crimp connections on copper conductors ranging from 22 to 16 AWG (0.50 to 1.50 sq mm). The terminal body measures 1.094 inches long and 0.457 inches wide, with a 1/4-inch (M6) stud size suitable for bolted lug connections. The copper contact features a TiN (titanium nitride) plating for corrosion resistance, and the nylon insulation sleeve is color-coded red to indicate the 22-to-16 AWG wire range. Electricians and panel technicians use this terminal for reliable, low-resistance wire terminations in control panels, junction boxes, and equipment wiring harnesses.

This ring terminal is suited for residential and light commercial electrical work, including control wiring, low-voltage circuits, and equipment grounding applications. The 1/4-inch stud size accommodates standard screw and bolt terminals found on buss bars, ground bars, and equipment chassis lugs. Sold in a pack of 100, this terminal is a practical bench-stock item for service vehicles and panel shops handling multi-wire termination jobs.

Key Features

• Compatible wire range: 22 to 16 AWG (0.50 to 1.50 sq mm)
• 1/4-inch (M6) stud size for standard bolted lug connections
• Copper contact with TiN plating for corrosion resistance
• Nylon partial insulation sleeve, red color-coded for AWG range identification
• Crimp connection type for fast, consistent field termination
• Pack of 100 terminals for high-volume or bench-stock use

Compatibility

Designed as a standard crimp ring terminal for use with 22 to 16 AWG copper conductors and 1/4-inch (M6) stud termination points in electrical panels, control boards, and equipment wiring assemblies.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the circuit and verify absence of voltage before making any terminations. Use a calibrated ratcheting crimp tool rated for the applicable AWG range to ensure a proper mechanical and electrical connection. Do not over-strip the conductor insulation beyond the barrel depth of the terminal.
