Value Collection RNYD1-5 Ring Terminal 22-16 Awg Crimp 100 Pack

Product Description

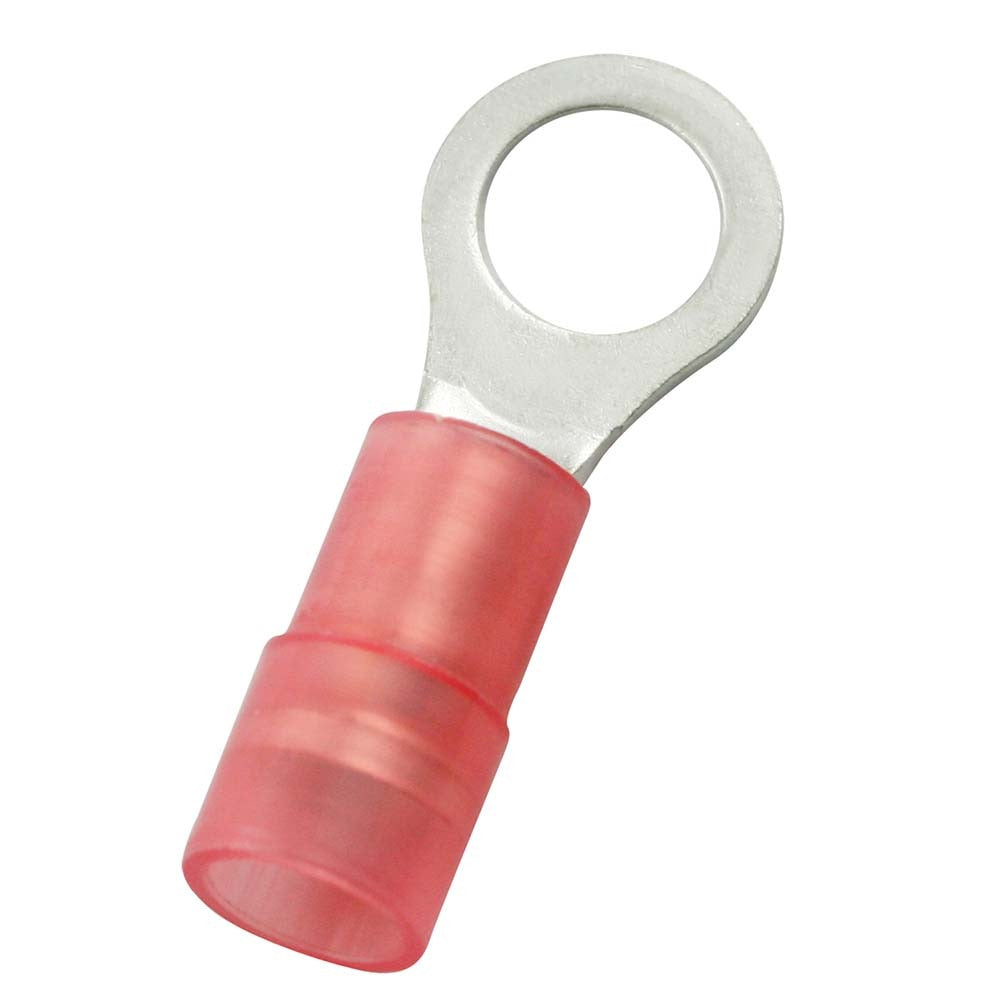

The VALUE COLLECTION RNYD1-5 is a partially insulated circular ring terminal designed for crimp-style electrical connections on copper conductors. Compatible with 22 to 16 AWG wire, this terminal features a copper contact with TiN (titanium nitride) plating and a red nylon insulation sleeve that provides partial coverage at the wire entry point. The ring opening fits a No. 10 stud (M5, 5.30 mm). Overall length is 0.858 inches and ring width is 0.315 inches with a contact thickness of 0.030 inches. Licensed electricians and wire harness technicians use these terminals in control panel wiring, low-voltage circuits, and equipment termination work.

These ring terminals are suited for residential and light commercial electrical applications where reliable, vibration-resistant terminations are required. Typical use cases include control wiring in HVAC equipment, panel wire terminations, and appliance wiring where a No. 10 or M5 screw-type stud connection is specified. The 22 to 16 AWG wire range covers a broad span of small-gauge control and signal wiring. This listing covers a pack of 100 terminals.

Key Features

• Partially insulated with red nylon sleeve for easy AWG-range identification and finger protection at wire entry
• Copper contact with TiN plating for corrosion resistance and reliable conductivity
• Crimp connection type for fast, tool-assisted termination without soldering
• Fits No. 10 stud (M5, 5.30 mm) ring opening
• Accepts 22 to 16 AWG wire (0.50 to 1.50 sq mm)
• Pack of 100 terminals for shop stock or job-site use

Compatibility

Designed for use with 22 to 16 AWG copper conductors terminated to No. 10 or M5 screw studs in standard crimp terminal applications.

Installation Notes

Installation requires an appropriately sized ratcheting or compression crimp tool rated for insulated ring terminals in the 22 to 16 AWG range. De-energize and lockout the circuit before terminating or disturbing any conductors. Strip wire to the length recommended by the crimp tool manufacturer, insert fully into the terminal barrel, and crimp once per the tool cycle. Inspect the completed crimp for barrel deformation, insulation damage, and firm mechanical pull resistance before energizing. Follow applicable NEC requirements for the circuit type and environment.
