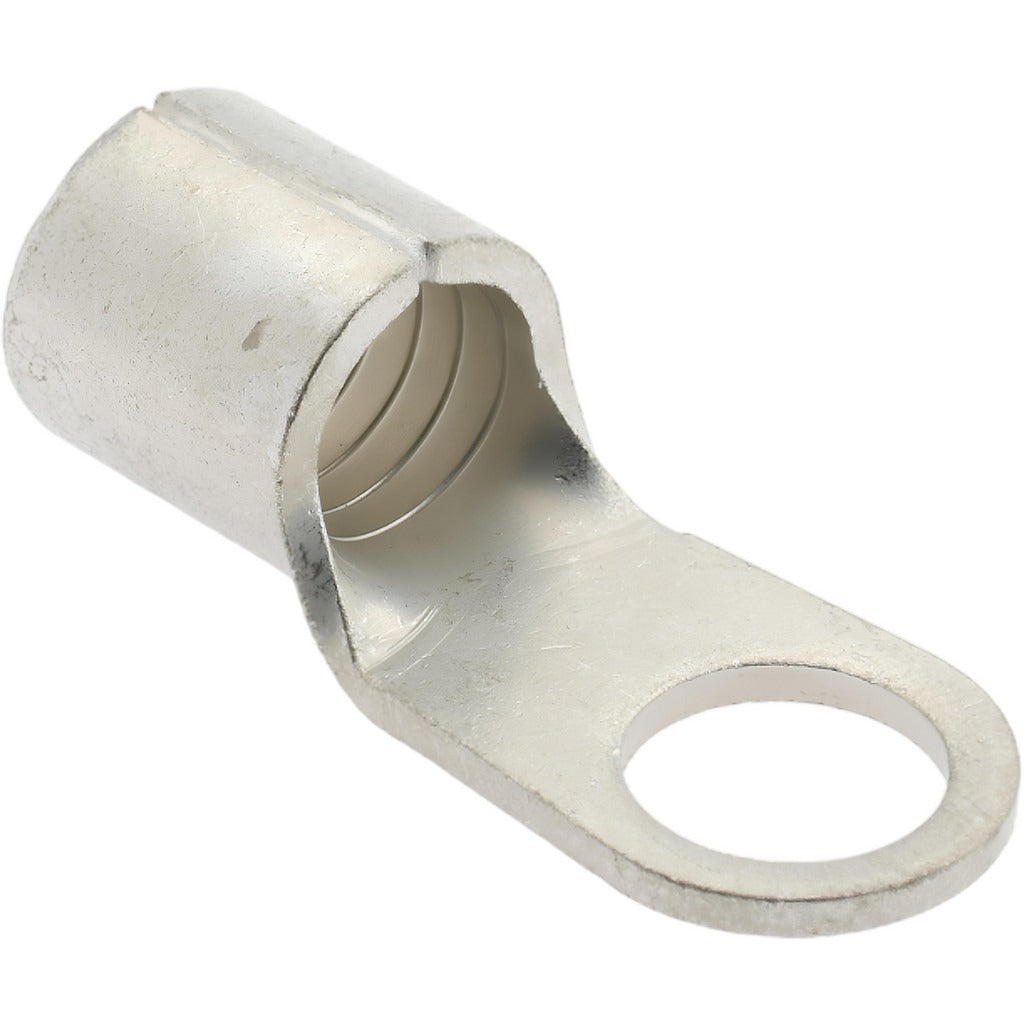

Value Collection RNBS38-10 Ring Terminal 2 Awg Crimp

Product Description

The VALUE COLLECTION RNBS38-10 is a non-insulated circular ring terminal designed for crimped wire connections in electrical and industrial wiring applications. Built with a copper contact, this terminal accommodates 2 AWG wire and a 3/8 inch stud. It measures 1.535 inches in overall length and 0.602 inches in ring width, with a contact thickness of 0.071 inches. The bare copper construction allows for direct conductivity without an insulating sleeve, making it suitable for applications where insulation is provided by the surrounding assembly or where visual inspection of the crimp joint is required. Licensed electricians and electrical tradespeople commonly install these terminals in panel wiring, grounding applications, and control system builds.

This ring terminal is suited for residential, commercial, and light industrial electrical work where 2 AWG conductors require a secure, low-resistance mechanical termination. It is appropriate for use in grounding conductors, battery cable assemblies, motor control panels, and heavy-duty electrical connections requiring a 3/8 inch stud mount. The non-insulated design is commonly selected when terminals will be covered by heat shrink or housed inside an enclosure.

Key Features

• Non-insulated copper contact for direct conductivity and visible crimp inspection
• Crimp connection type for reliable, gas-tight mechanical termination
• Compatible with 2 AWG wire (38.00 sq mm)
• 3/8 inch (9.53 mm) stud size for secure panel or lug mounting
• Overall length of 1.535 inches fits standard terminal block and lug applications
• CSA Certified, cUL Listed, UL Listed, and RoHS Compliant

Compatibility

Designed as an OEM-style replacement and general-purpose ring terminal for 2 AWG crimp applications requiring a 3/8 inch stud mount.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and any applicable local electrical codes. De-energize and lock out the circuit before terminating any conductors. Use a calibrated ratcheting crimp tool rated for the appropriate AWG and terminal type to achieve a proper gas-tight crimp. Do not solder over a crimped non-insulated terminal without confirming the application is rated for that practice.
