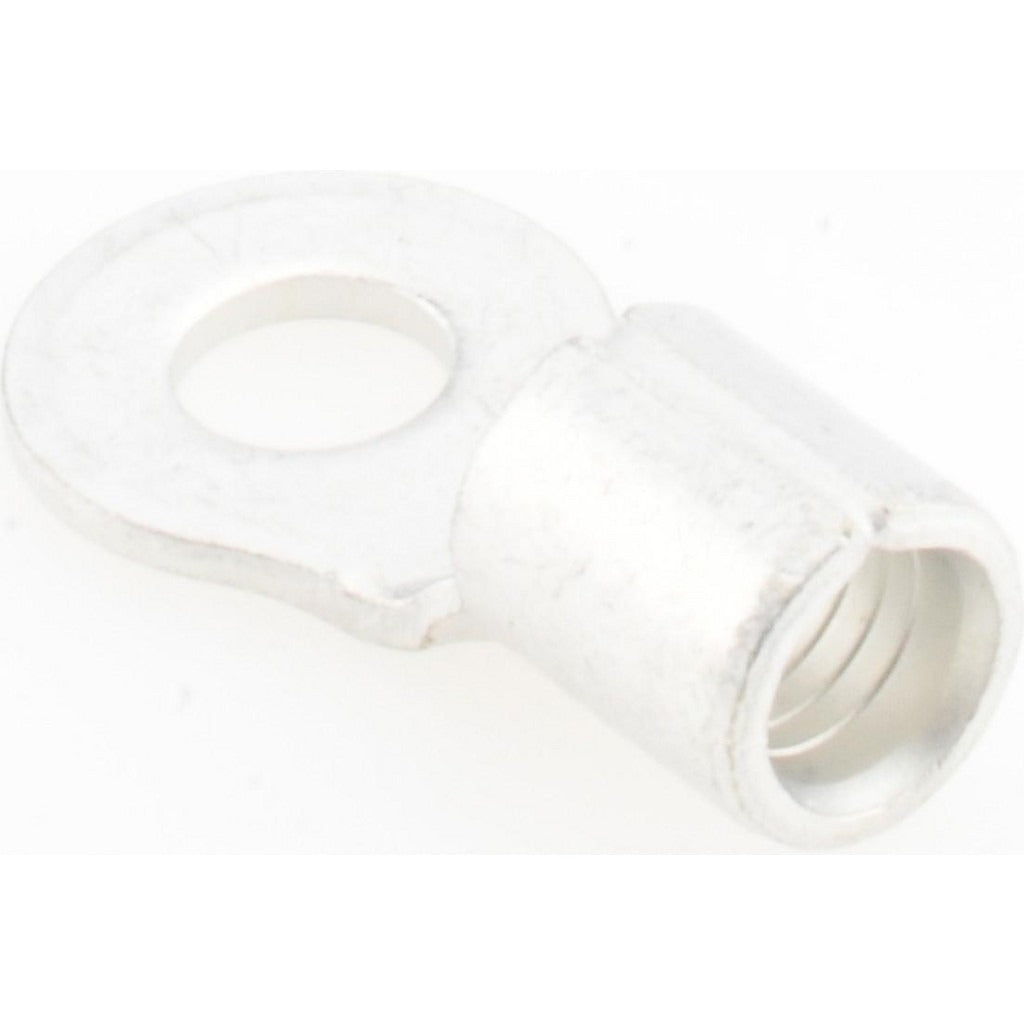

Value Collection RNBM8-5 Non-insulated Ring Terminal 8 Awg

Product Description

The VALUE COLLECTION RNBM8-5 is a non-insulated circular ring terminal designed for crimp connections on 8 AWG copper wire. It accepts a No. 10 stud and provides a secure, low-resistance termination point in electrical panels, control wiring, and equipment grounding applications. The terminal body is copper, measuring 0.937 inches in overall length and 0.472 inches in ring width, with a thickness of 0.047 inches. Its uninsulated design suits installations where heat shrink or separate sleeving is applied over the connection, or where the terminal lands in a protected enclosure. Licensed electricians and control-panel assemblers are the primary installers.

This ring terminal is suited for residential and commercial electrical work, panel wiring, motor control circuits, and grounding runs where 8 AWG conductors terminate at a No. 10 screw or stud. The crimp-style connection is compatible with standard ratcheting crimp tools. It meets CSA, cUL, and UL listing requirements along with RoHS compliance, making it acceptable for use in listed assemblies and equipment where those certifications are required.

Key Features

• Non-insulated copper body for direct crimp termination on 8 AWG wire
• No. 10 stud size fits common panel screws and grounding lugs
• 0.937-inch overall length and 0.472-inch ring width for standard lug clearance
• 0.047-inch terminal thickness for consistent crimp grip and contact pressure
• CSA Certified, cUL Listed, UL Listed, and RoHS Compliant

Compatibility

Designed as an OEM-style replacement and standard-use crimp terminal for 8 AWG wire applications requiring a No. 10 stud ring lug in electrical and control wiring installations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements. De-energize the circuit completely before terminating or inspecting ring terminals. Use a calibrated ratcheting crimp tool sized for 8 AWG non-insulated terminals to achieve a proper mechanical and electrical connection. Do not solder over a crimped non-insulated terminal without verifying that the assembly listing permits it.
