Value Collection RHSA1432 Hammer Drive Concrete Anchor

Product Description

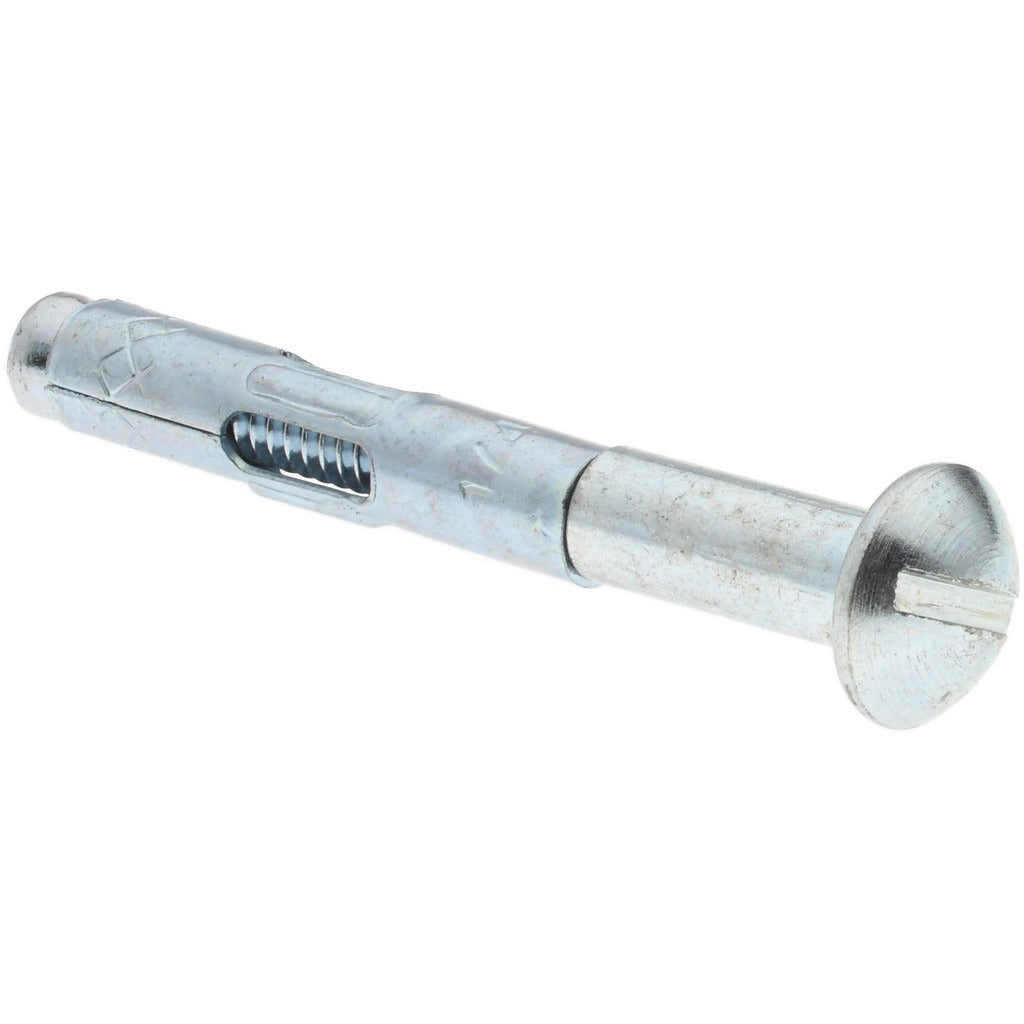

The VALUE COLLECTION RHSA1432 is a hammer drive concrete anchor designed for fast, tool-simple fastening into concrete, block, and masonry substrates. The anchor measures 1/4 inch in diameter and 2 inches in overall length, with a minimum embedment depth of 1 inch. Constructed from steel with a zinc-plated finish, it resists corrosion in typical interior and light exterior applications. The round head style seats flush against the work surface after seating. Installation requires only a hammer and a properly sized pilot hole, making this anchor a common choice for securing electrical conduit straps, junction box brackets, and light structural clips to concrete.

This anchor is suited for residential and light commercial applications where a low-profile, permanent concrete fastener is needed. Typical uses include anchoring to poured concrete floors and walls, CMU block, and similar hard masonry surfaces. Electricians, plumbers, and HVAC technicians reach for this style of anchor when securing pipe hangers, conduit supports, equipment pads, and bracket mounts directly to concrete structural elements. The minimum order quantity for this anchor is 10 units per order.

Key Features

• 1/4 inch diameter shaft fits standard pilot hole sizing for this anchor class
• 2 inch overall length with 1 inch minimum embedment depth for secure seating
• Steel construction with zinc-plated finish for corrosion resistance in dry and light-moisture environments
• Round head style provides a low-profile, flush-seating installation
• Hammer-drive installation requires no specialty tools beyond a hammer and drill
• Permanent anchor style — not intended for removal and reuse

Compatibility

Designed as an OEM-style replacement and general-purpose hammer drive anchor for use in poured concrete, concrete block, and masonry substrates where a 1/4 inch diameter permanent fastener is required.

Installation Notes

Installation is performed by drilling a pilot hole of the correct diameter and depth into the concrete substrate, inserting the anchor, and driving it flush with a hammer. Embedment must meet or exceed the 1 inch minimum to achieve rated holding performance — deeper embedment is recommended where loads allow. Follow applicable building and mechanical codes, including IPC and IFGC support-spacing requirements when anchoring pipe or equipment. This is a permanent anchor and should not be driven into surfaces where future removal is expected.
