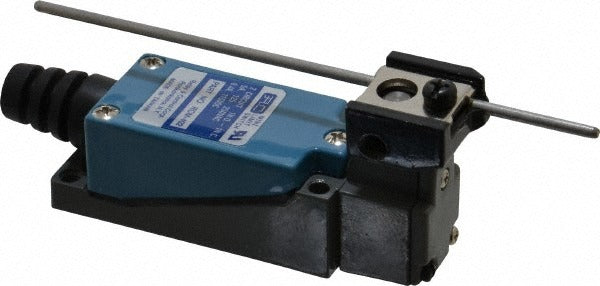

Value Collection RCM-402 Limit Switch Spdt Nc Rod Lever

Product Description

The VALUE COLLECTION RCM-402 is a general purpose limit switch designed for position sensing and machine control applications in industrial and commercial environments. It features an SPDT contact form with a normally closed (NC) configuration and a rod lever actuator mounted on the side of the switch body. The screw terminal connection makes field wiring straightforward. The metal and plastic composite body offers durability in typical control panel and machinery installations. Licensed electricians and industrial maintenance technicians are the primary installers of this type of device.

The RCM-402 is suited for use in automated machinery, conveyor systems, door position sensing, and similar electromechanical control applications where a mechanical actuator triggers a circuit change. The rod lever actuator allows contact with moving machine members across a defined travel arc. It is appropriate for both new installations and replacement of worn or failed limit switches in existing control circuits.

Key Features

• SPDT contact form with normally closed (NC) configuration for standard fail-safe control wiring
• Rod lever actuator with side-mount orientation for flexible machine integration
• Screw terminal connections for reliable, tool-accessible field wiring
• Metal and plastic composite body construction for durability in industrial environments
• 20-degree pre-travel (PT) and 75-degree over-travel (OT) for defined actuation range
• UL Listed for use in applicable control circuit applications

Compatibility

Designed as a general purpose replacement or new-installation limit switch for industrial and commercial electromechanical control systems requiring an SPDT, NC, rod lever, side-mount configuration with screw terminals.

Installation Notes

Installation should be performed by a qualified electrician or industrial controls technician in accordance with applicable NEC requirements. De-energize and lock out the machine or control circuit before mounting or wiring the switch. Ensure the actuator rod is aligned with the approaching machine member within the specified travel arc to prevent mechanical damage to the switch. Verify terminal screw torque using the manufacturer documentation supplied with the unit.
