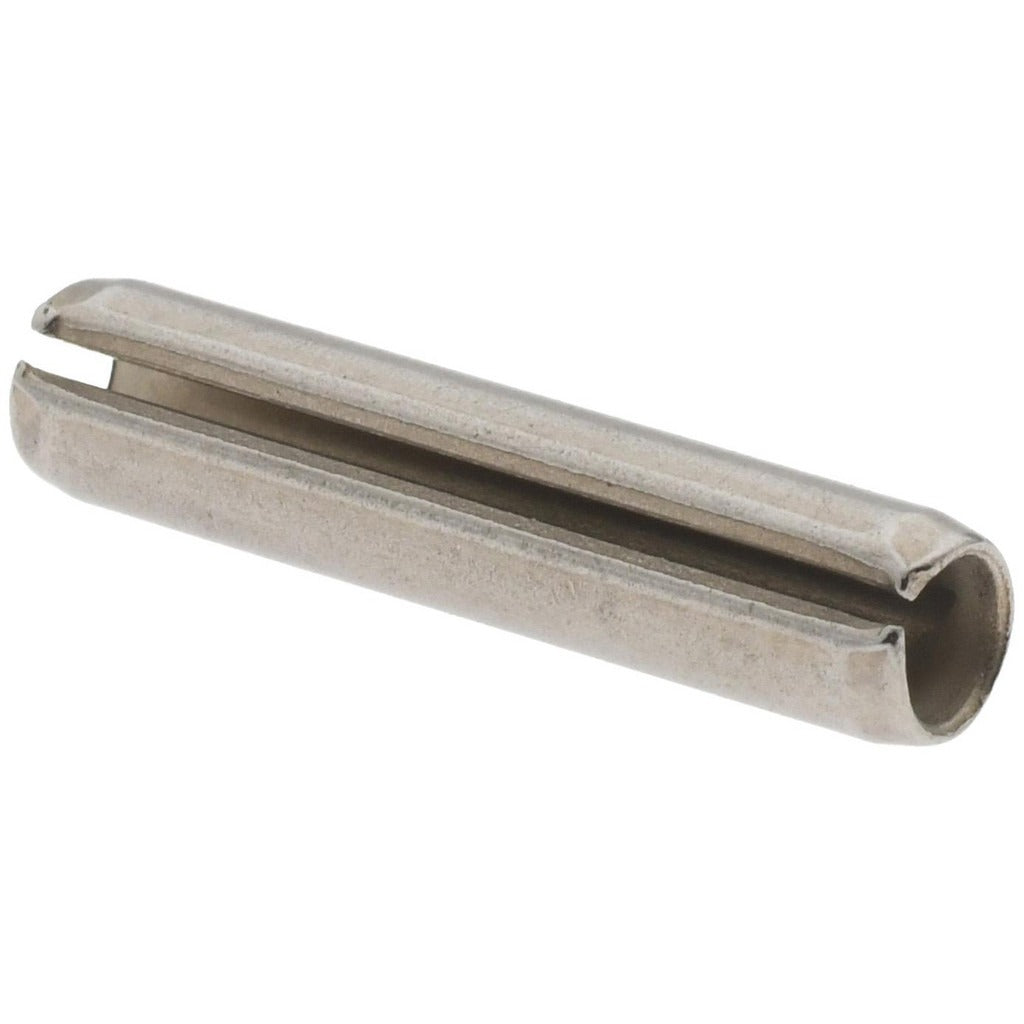

Value Collection R63096484 Slotted Spring Pin 420 Ss

Product Description

The VALUE COLLECTION R63096484 is a slotted spring pin machined from grade 420 stainless steel with a bright finish. It measures 0.1563 inches in diameter (5/32 inch fractional equivalent) and 0.75 inches in overall length. The slotted design allows the pin to compress during installation and exert outward spring force once seated, securing components without additional fasteners. Grade 420 stainless steel provides solid corrosion resistance and hardness suitable for demanding mechanical assemblies. This pin is sold individually and is commonly installed by maintenance technicians, millwrights, and mechanical assemblers in light-industrial and trade service applications.

Slotted spring pins are used in a wide range of mechanical assemblies to secure shafts, gears, levers, and linkages in both residential and light-commercial equipment. This 5/32-inch diameter pin is well suited to small-bore applications where a press-fit or snap-fit retention method is required. Typical install scenarios include HVAC linkage assemblies, pump shaft retention, and general mechanical component alignment. The inch measurement system makes it directly compatible with standard inch-series bored components.

Key Features

• Slotted spring design compresses on insertion and seats with outward radial force for secure retention
• Grade 420 stainless steel construction offers corrosion resistance and elevated hardness
• Bright finish for consistent surface quality and dimensional accuracy
• 0.1563 inch (5/32 inch) diameter fits standard inch-series bored holes
• 0.75 inch overall length suits shallow-to-medium bore depth applications
• Inch measurement system for direct compatibility with inch-series mechanical components

Compatibility

Designed as an OEM-style replacement or service pin for mechanical assemblies requiring a 5/32-inch diameter slotted spring pin in inch-series components.

Installation Notes

Slotted spring pins are typically installed by maintenance technicians or millwrights using a pin punch and hammer or an arbor press. Ensure the receiving bore is clean and free of burrs before driving the pin to prevent galling or deformation. Depressurize or de-energize any system before disassembling components that retain this pin. Do not reuse a spring pin that shows cracking, permanent deformation, or loss of spring tension.
