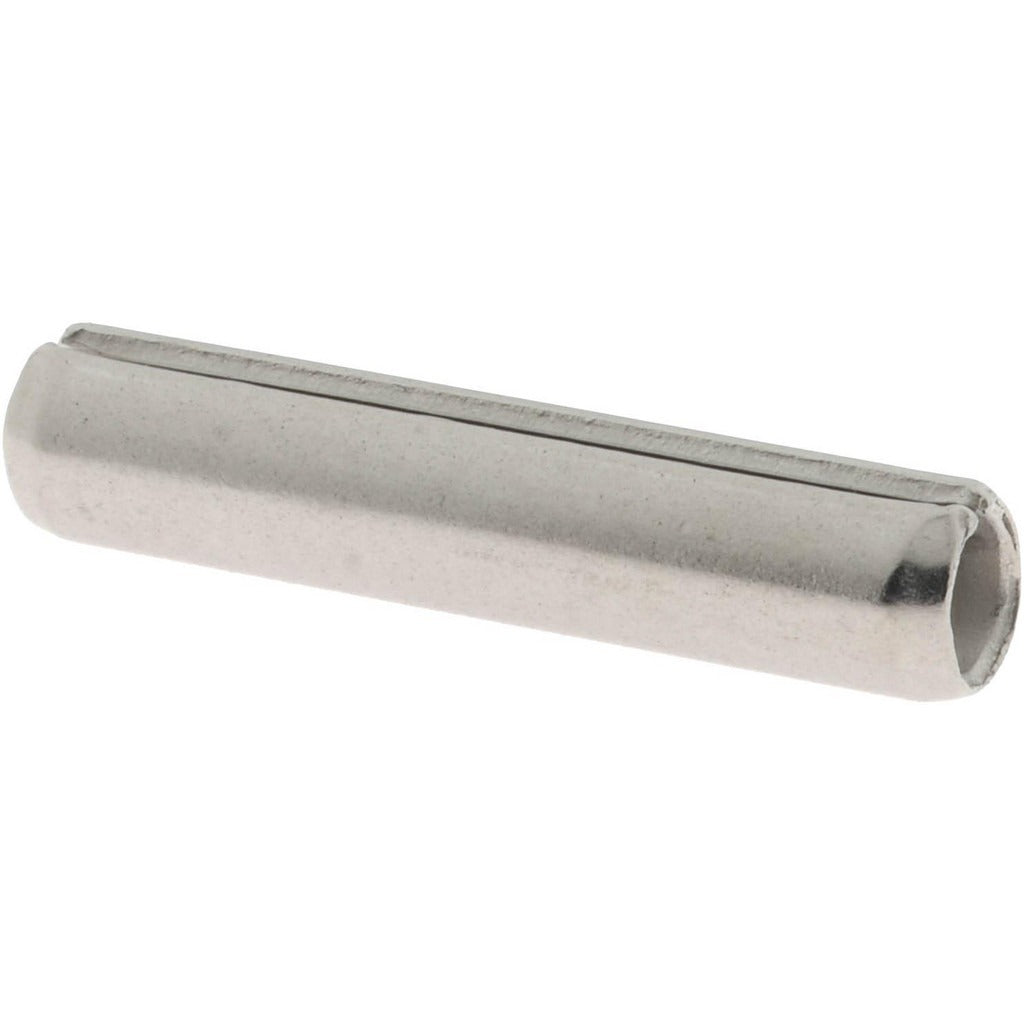

Value Collection R63096069 Slotted Spring Pin 420 Ss

Product Description

The VALUE COLLECTION R63096069 is a slotted spring pin designed for use in mechanical assemblies requiring a secure, removable fastening solution. Measuring 0.1875 inches in diameter and 7/8 inch in length, this pin is manufactured from Grade 420 stainless steel with a bright finish. The slotted design allows the pin to compress on insertion and exert outward radial pressure against the bore wall, creating a firm, vibration-resistant fit without the need for additional hardware. Machinists, millwrights, and maintenance technicians working on equipment assembly, alignment, and component retention applications typically install these pins.

Slotted spring pins of this size are commonly used in light-duty to medium-duty mechanical assemblies including linkages, hinges, shafts, and brackets found in industrial equipment, HVAC system components, pumps, and plumbing fixtures. The 420 stainless steel construction provides corrosion resistance suitable for moderately wet or humid environments, making these pins appropriate for both indoor mechanical systems and equipment exposed to moisture. They are sold individually with a minimum order quantity of 100 units, suited for shop stock or production-level fastener inventory.

Key Features

• 0.1875 inch (3/16 inch) diameter for precise bore fitment in standard pin holes
• 7/8 inch overall length provides adequate engagement depth in typical mechanical assemblies
• Grade 420 stainless steel construction offers corrosion resistance in wet and humid service environments
• Bright finish for clean appearance and consistent dimensional tolerances
• Slotted spring design compresses on insertion for a secure, friction-held fit without additional fasteners
• Does not meet military specifications — intended for standard commercial and industrial applications

Compatibility

Designed as a standard commercial slotted spring pin for use in any mechanical assembly requiring a 0.1875 inch diameter spring pin in an inch-measurement system.

Installation Notes

Slotted spring pins are installed using a pin punch and hammer or an arbor press — ensure the bore diameter matches the pin nominal diameter before driving. De-energize or lock out any equipment before replacing or installing pins in moving assemblies. Avoid reusing pins that have been fully compressed or deformed, as repeated cycling reduces retention force. Follow applicable machinery safety standards and equipment manufacturer procedures during installation.
