Value Collection R63096028 Slotted Spring Pin 420 Ss

Product Description

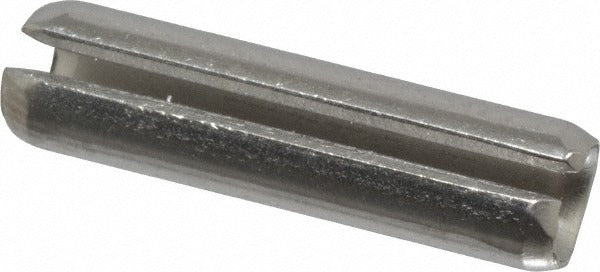

The VALUE COLLECTION R63096028 is a slotted spring pin manufactured from 420 stainless steel with a bright finish. Slotted spring pins, also known as roll pins, use a longitudinal slot that allows the pin to compress under load and exert radial force against the bore wall, locking it in place without adhesive or threads. This pin measures 0.1875 inches in diameter and 0.75 inches in length. It is used in mechanical assemblies where a removable, self-retaining fastener is required. Machinists, millwrights, and maintenance technicians install these pins in shafts, linkages, and housings across industrial and OEM equipment applications.

This slotted spring pin is suited for use in light to medium-duty mechanical assemblies where resistance to corrosion and moderate strength are both required. The 420 stainless steel grade provides better hardness than austenitic grades while retaining adequate corrosion resistance for general industrial environments. Typical install scenarios include shaft-to-hub connections, clevis pins, hinge assemblies, and alignment fixtures in both OEM manufacturing and field maintenance settings. This item is sold individually, with a minimum order quantity of 100 pieces.

Key Features

• Slotted design compresses on installation to create a secure interference fit in the bore
• 420 stainless steel construction offers improved hardness and corrosion resistance over carbon steel alternatives
• Bright finish for consistent dimensional tolerances and clean appearance
• 0.1875 inches (3/16 inches) diameter fits standard bore sizes for this pin class
• 0.75 inches overall length suits a range of hub and housing thicknesses
• Inch measurement system; does not meet military specifications

Compatibility

Designed as a standard-dimension slotted spring pin for use in any mechanical assembly that accepts a 3/16-inch diameter roll pin in the 0.75-inch length, across general industrial, OEM, and maintenance applications.

Installation Notes

Slotted spring pins are installed by machinists or maintenance technicians using a pin punch and hammer or an arbor press. Align the pin with the bore before driving to prevent cocking or deformation of the slot. Always power down and de-energize or depressurize the assembly before performing pin removal or installation. Use the correct diameter punch to avoid damaging the bore or surrounding material.
