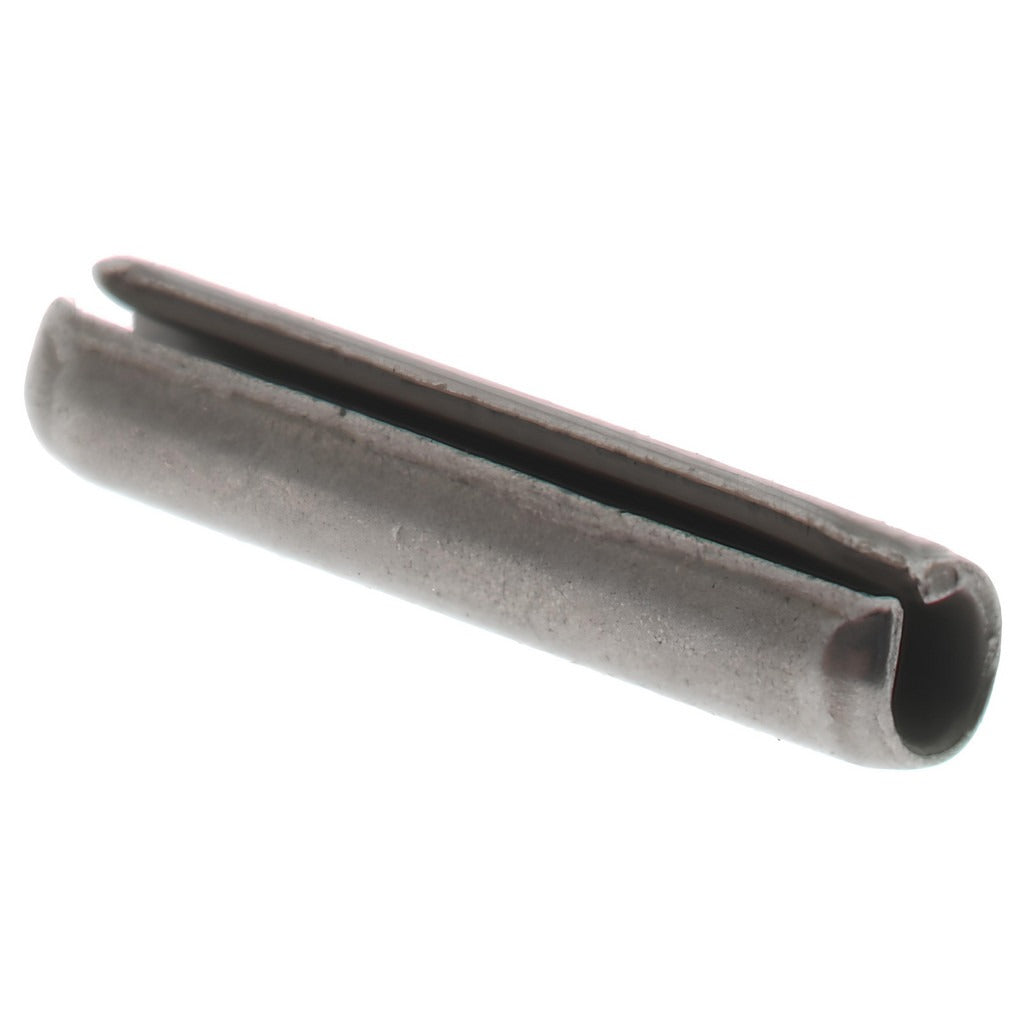

Value Collection R63094481 Slotted Spring Pin 420 Ss

Product Description

The VALUE COLLECTION R63094481 is a slotted spring pin manufactured from grade 420 stainless steel with a bright finish. Spring pins are radially compressed during installation and exert outward force against the hole wall to maintain their position without additional fasteners. This pin measures 3/8 inch in overall length and 5/64 inch in diameter, making it suited for compact fastening and alignment applications. The slotted design allows the pin to flex inward under press load and spring back to grip the bore. Technicians in mechanical assembly, maintenance, and light fabrication roles install these pins using standard pin punches and arbor presses.

This slotted spring pin is used in applications requiring a reliable, removable retention pin in close-tolerance bores. The 420 stainless steel construction provides moderate corrosion resistance and hardness, making it appropriate for environments where mild moisture exposure or repeated cycling is a factor. Typical install scenarios include linkage assemblies, hinge retention, gear and shaft alignment, and fixture locating in both shop and field settings. This part is sold individually with a minimum order quantity of 100 units.

Key Features

• Slotted spring pin design provides radial grip without threads or adhesives
• Grade 420 stainless steel offers moderate corrosion resistance and good hardness
• Bright finish for consistent dimensional tolerances
• 3/8 inch overall length suits compact bore retention applications
• 5/64 inch diameter for fine-pitch alignment and fastening tasks
• Inch measurement system for compatibility with standard tooling and gauging

Compatibility

Designed as a standard slotted spring pin for use in any application requiring a 5/64 inch diameter by 3/8 inch long spring pin in an inch-dimensioned bore.

Installation Notes

Slotted spring pins are installed by mechanical trades and assembly technicians using a pin punch or arbor press sized to the pin diameter. Ensure the receiving bore is clean and dimensionally correct before pressing the pin into position. Always support the workpiece to avoid distortion during installation. Remove existing pins with a proper punch to avoid bore damage before installing a replacement.
