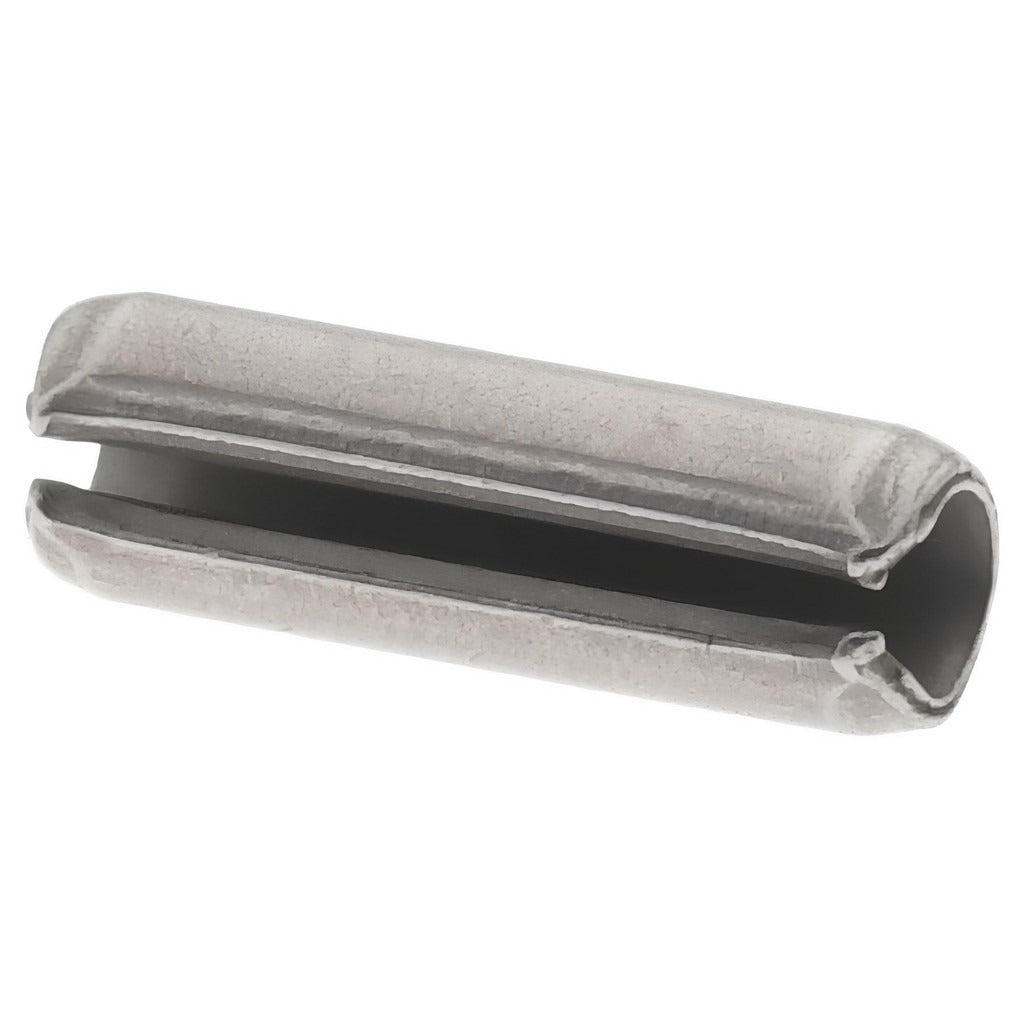

Value Collection R63094362 Slotted Spring Pin 420 Ss

Product Description

The VALUE COLLECTION R63094362 is a slotted spring pin designed for use in mechanical assemblies requiring a reliable, removable fastener that absorbs shock and vibration through its slotted, compressible body. Measuring 5/16 inches in overall length and 3/32 inches in diameter, this pin is manufactured from grade 420 stainless steel with a bright finish. The slotted design allows the pin to compress on insertion and expand against the bore wall, providing a secure friction fit. Machinists, maintenance technicians, and industrial assembly workers install these pins in shafts, linkages, and housings across a wide range of equipment.

This slotted spring pin suits applications in light to medium-duty mechanical assemblies where corrosion resistance and dimensional stability are required. The compact 5/16-inch length makes it appropriate for tight-clearance installations in small mechanical components, jigs, fixtures, and precision assemblies. Grade 420 stainless steel provides moderate corrosion resistance suitable for general industrial and light outdoor environments. This pin ships individually but is subject to a minimum order quantity of 100 units.

Key Features

• Slotted body compresses on insertion for a secure friction fit in drilled bores
• Grade 420 stainless steel construction offers moderate corrosion resistance
• Bright finish with consistent dimensional tolerances for reliable fitment
• 5/16 inch overall length suits compact, tight-clearance mechanical assemblies
• 3/32 inch diameter compatible with standard drilled or reamed bore sizes

Compatibility

Designed as a standard slotted spring pin for use in mechanical assemblies requiring a 3/32 inch diameter bore and a 5/16 inch pin length, manufactured to inch-system dimensions.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a pin punch and hammer or an arbor press to drive the pin into a properly sized drilled or reamed bore. The bore diameter should match the nominal pin diameter to ensure proper compression and retention. Always de-energize and lock out equipment before servicing assemblies containing spring pins. Do not reuse pins that have been fully removed, as repeated cycling can reduce retention force.
