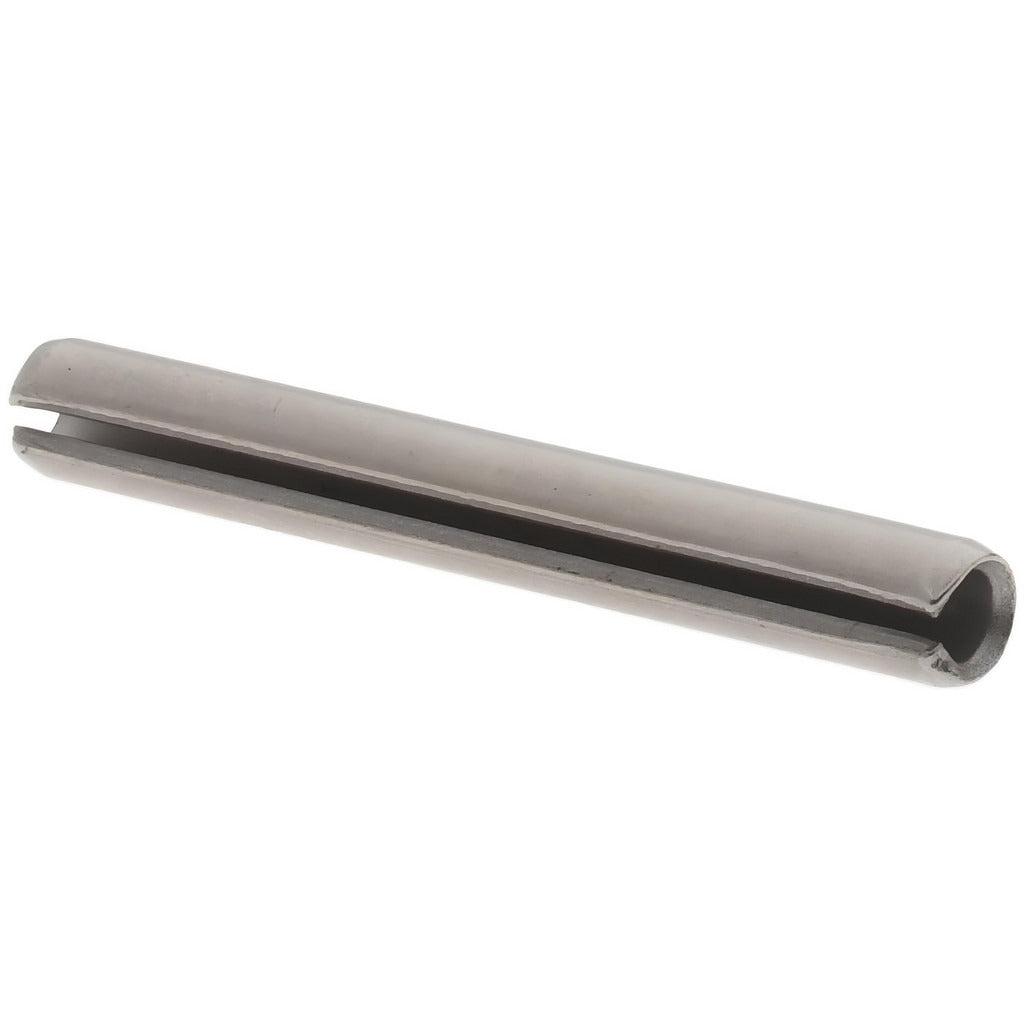

Value Collection R63090640 Slotted Spring Pin 420 Ss

Product Description

The VALUE COLLECTION R63090640 is a slotted spring pin designed for use in mechanical assemblies where a resilient, interference-fit fastener is required. Measuring 0.125 inches in diameter and 1 inch in overall length, this pin is manufactured from Grade 420 stainless steel with a bright finish. The slotted design allows the pin to compress on insertion and exert radial pressure against the bore wall, creating a secure hold without threading or adhesive. Installers in industrial maintenance, mechanical assembly, and equipment fabrication rely on this type of pin for alignment, pivot, and locking applications.

This slotted spring pin is suited for use in light to medium-duty mechanical assemblies across manufacturing, maintenance, and repair operations. The 1/8-inch diameter and 1-inch length make it appropriate for smaller bore applications in machinery, tooling fixtures, hinges, and equipment panels. Grade 420 stainless steel provides moderate corrosion resistance, making it a practical choice for environments with occasional moisture exposure. This item is sold individually and is available in multiples of 100.

Key Features

• Slotted design compresses on insertion for a secure interference fit in drilled bores
• Grade 420 stainless steel construction offers moderate corrosion resistance
• Bright finish for consistent surface quality and dimensional accuracy
• 0.125 inch (1/8 inch) diameter suits standard small-bore applications
• 1 inch overall length compatible with a wide range of panel and fixture thicknesses
• Inch measurement system; does not meet military specifications

Compatibility

Designed as a standard slotted spring pin for use in any application requiring a 0.125-inch diameter, 1-inch long interference-fit pin in an inch-dimensioned bore.

Installation Notes

Slotted spring pins are installed by mechanical technicians and maintenance professionals using a pin punch and hammer or an arbor press. Always ensure the receiving bore is drilled to the correct diameter to achieve proper interference fit. De-burr bore edges before installation to prevent pin damage or binding. Do not reuse a spring pin that has been fully driven and removed, as repeated cycling reduces clamping force.
