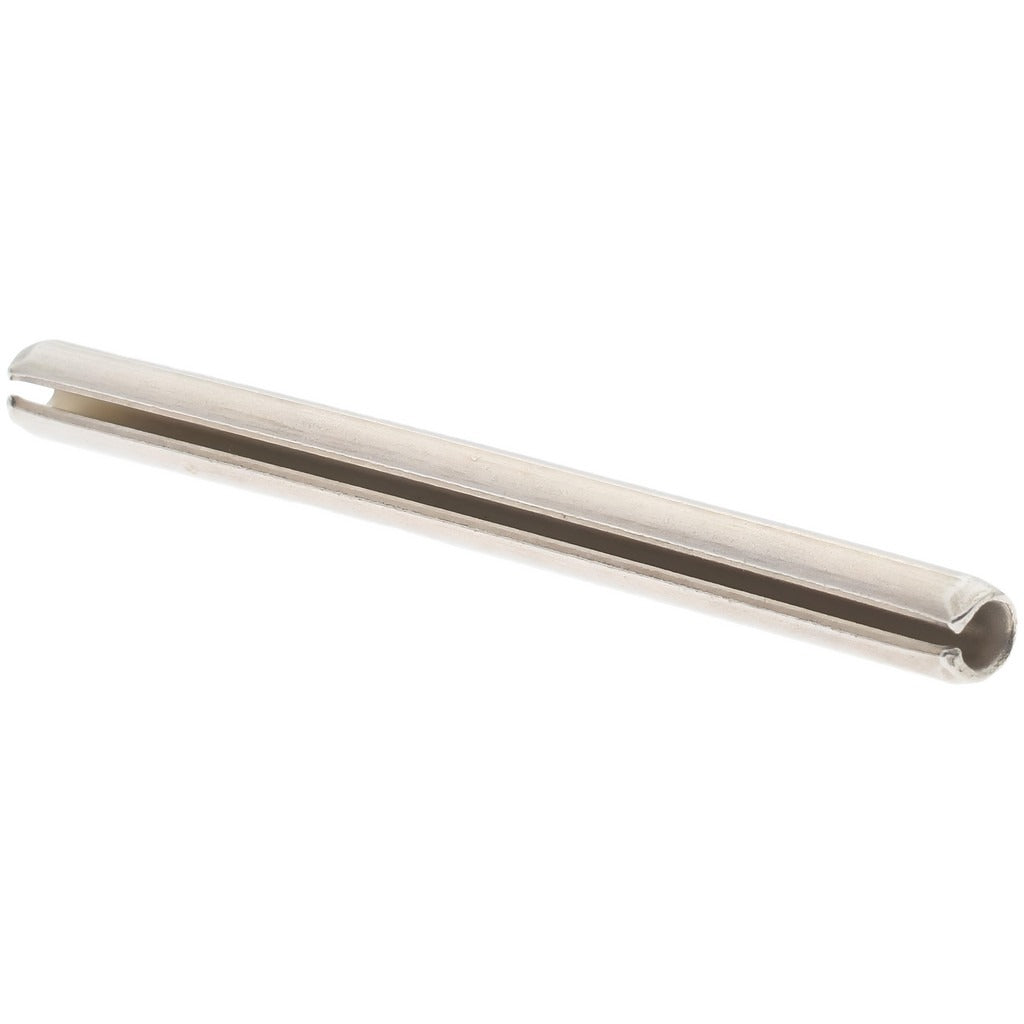

Value Collection R63090124 Slotted Spring Pin 420 Ss

Product Description

The VALUE COLLECTION R63090124 is a slotted spring pin designed for use in mechanical assemblies where a reliable, removable fastening element is required. At 0.0938 inches (3/32 inch) in diameter and 1-1/8 inches in length, this pin provides radial compression upon insertion, allowing it to seat firmly in drilled holes across a range of mating materials. Constructed from Grade 420 stainless steel with a bright finish, it offers solid corrosion resistance and durability in moderate-duty environments. Machinists, millwrights, and maintenance technicians routinely install slotted spring pins as alignment and retention devices in shafts, housings, and linkages.

This pin is suited for use in industrial machinery, light mechanical assemblies, and general-purpose fabrication applications. The inch-system dimensioning makes it compatible with standard imperial-spec drilled hole patterns. The Grade 420 stainless steel construction is appropriate for environments where mild corrosion resistance is needed without the cost of higher-alloy grades. Sold individually, with a minimum order quantity of 100 units, this part is typically purchased for stocking, production runs, or maintenance kit replenishment.

Key Features

• 0.0938 inch (3/32 inch) diameter for use in standard imperial-drilled holes
• 1-1/8 inch overall length provides positive engagement depth in most light-duty assemblies
• Grade 420 stainless steel construction offers moderate corrosion resistance and good hardness
• Bright finish for consistent surface quality and dimensional accuracy
• Slotted design allows radial compression for secure, removable installation without tooling damage to the bore
• Does not meet military specifications — intended for commercial and industrial applications

Compatibility

Designed as a commercial-grade slotted spring pin for use in standard inch-system mechanical assemblies requiring a 3/32 inch diameter retention or alignment pin.

Installation Notes

Slotted spring pins are typically installed by machinists or maintenance technicians using a pin punch and hammer, or a pneumatic press, into a pre-drilled through-hole or blind hole of the appropriate diameter. Ensure the receiving hole is deburred before installation to prevent galling or improper seating. Power down and de-energize any equipment before pin removal or installation. Follow applicable machinery safety lockout/tagout procedures per OSHA and equipment manufacturer guidelines.
