Value Collection R63090024 Slotted Spring Pin 420 Ss

Product Description

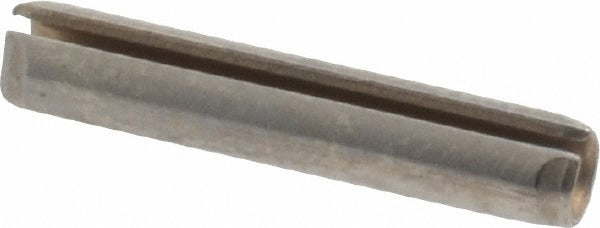

The VALUE COLLECTION R63090024 is a slotted spring pin manufactured from grade 420 stainless steel with a bright finish. It measures 0.125 inches in diameter and 0.6875 inches (11/16 inches) in length. Slotted spring pins are hollow, slotted cylindrical fasteners that compress upon insertion and exert radial force against the hole wall, creating a secure, vibration-resistant fit without threading. They are installed by maintenance technicians, machinists, and mechanical assemblers across a wide range of industrial and mechanical applications. The 420 stainless steel construction provides good corrosion resistance and hardness suitable for moderate service environments.

This pin is suited for use in light to medium-duty mechanical assemblies where a reliable, removable, or semi-permanent fastening solution is needed. Common applications include linkage assemblies, pivot points, shaft retention, and positional alignment in machinery, fixtures, and fabricated components. The inch measurement system makes it a straightforward fit for standard imperial-dimensioned assemblies. It does not meet military specifications and is intended for commercial and industrial use.

Key Features

• Slotted design compresses on insertion for a secure, vibration-resistant fit
• Grade 420 stainless steel provides corrosion resistance and surface hardness
• Bright finish for consistent dimensional appearance
• 0.125 inch diameter with 0.6875 inch overall length for compact fastening tasks
• Inch measurement system for direct compatibility with imperial-dimensioned bores

Compatibility

Designed as a standard slotted spring pin for use in imperial-dimensioned holes requiring a 0.125 inch diameter spring pin in commercial and industrial mechanical assemblies.

Installation Notes

Slotted spring pins are typically driven into pre-drilled holes using a hammer and pin punch or an arbor press. Ensure the receiving hole is drilled and deburred to the correct tolerance before installation. Wear appropriate eye protection when driving pins. Do not exceed the rated shear load of the pin for the application.
