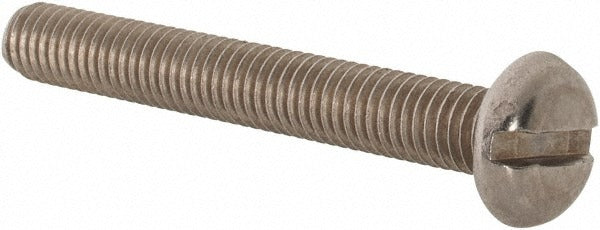

Value Collection R63034480 Machine Screw 10-32 X 1-1/2 in

Product Description

The VALUE COLLECTION R63034480 is a 10-32 x 1-1/2 inch pan head machine screw with a slotted drive, manufactured from 18-8 stainless steel with a bright, uncoated finish. The 10-32 thread designation indicates a number 10 diameter with 32 threads per inch, conforming to Unified National Fine (UNF) standards. The length measurement is taken under the head, yielding 1-1/2 inches of threaded shank. This fastener is suited for mechanical assembly work in HVAC, electrical, plumbing, and general trade applications where corrosion resistance and precise thread engagement are required.

This screw is used in light- to medium-duty fastening applications where a UNF thread profile is specified. The pan head geometry provides a low-profile, wide-bearing surface suitable for sheet metal panels, equipment enclosures, control boards, and similar assemblies. The 18-8 stainless steel construction resists oxidation and mild chemical exposure, making it appropriate for both indoor mechanical rooms and light outdoor service environments. It is sold in multiples of 100 pieces per order.

Key Features

• 10-32 UNF thread for precise, fine-pitch engagement in tapped holes or with matching nuts
• 1-1/2 inch length measured under the head, providing adequate thread engagement for standard panel thicknesses
• Pan head profile offers a wide, flat bearing surface with a low, rounded top
• Slotted drive accommodates a standard flat-head screwdriver
• 18-8 stainless steel construction resists corrosion without a coating or plating
• Bright, uncoated finish — no additional surface treatment that could affect thread tolerance

Compatibility

Designed as a standard UNF 10-32 machine screw for use in any application requiring a number 10, fine-thread fastener with a pan head and slotted drive in inch-measurement systems.

Installation Notes

Installation is performed with a flat-head screwdriver sized to the slot width; an electric driver with adjustable torque is recommended to avoid cam-out or slot damage. De-energize and lock out any electrical or mechanical equipment before fastening into enclosures or control panels in accordance with applicable NFPA 70E or site lockout/tagout procedures. Do not overtighten stainless steel fasteners into tapped stainless or aluminum threads, as galling can occur — apply an anti-seize compound if required by the assembly specification.
