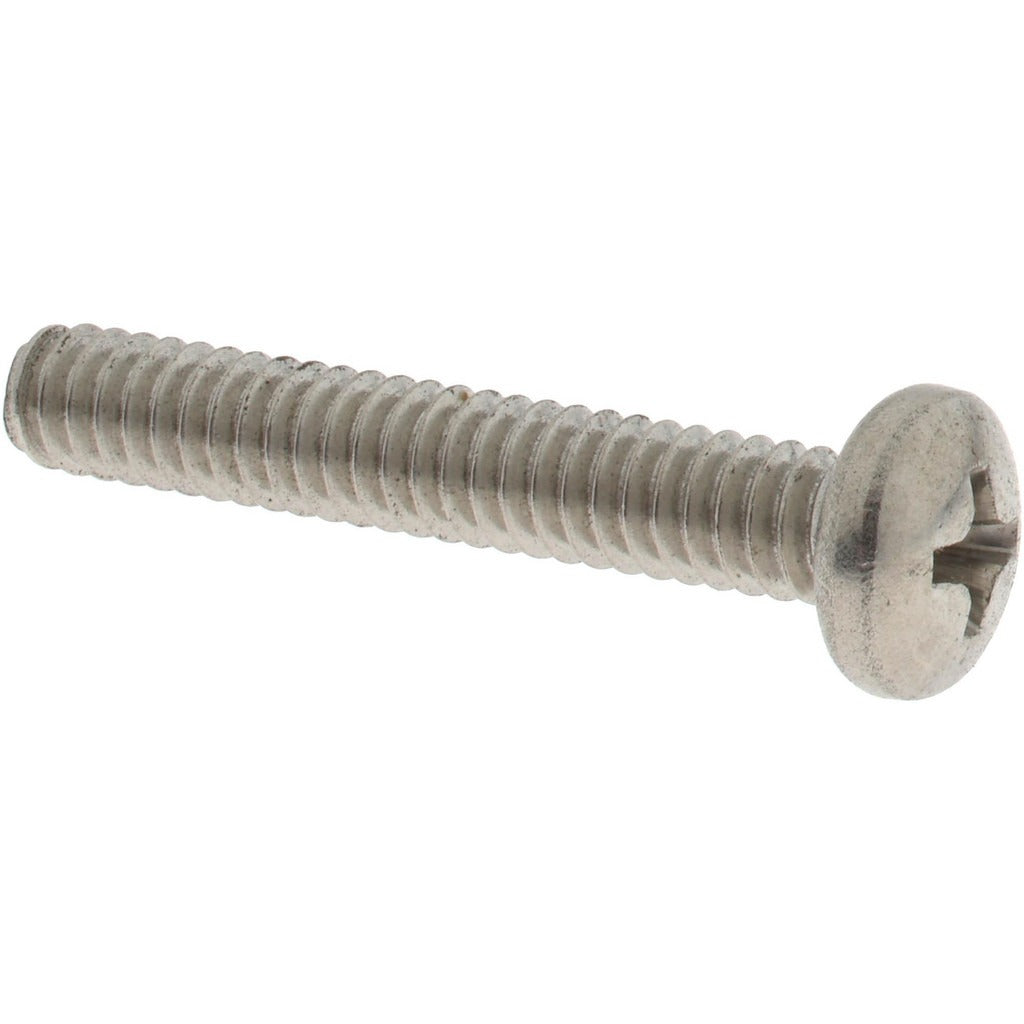

Value Collection R63031968 Machine Screw 10-24 X 1-1/4 in Pan Phillips

Product Description

The VALUE COLLECTION R63031968 is a 10-24 UNC machine screw measuring 1-1/4 inches under the head, fitted with a pan head and Phillips drive. Manufactured from 18-8 stainless steel with a bright, uncoated finish, this fastener provides solid corrosion resistance in wet or chemically exposed environments. The pan head profile offers a low, rounded bearing surface suited for applications where a flat seating surface is available. The Phillips recess accepts standard #2 Phillips drivers, making installation fast with common hand tools or power drivers. This screw is a standard inch-series fastener used across mechanical assembly, panel fabrication, enclosure work, and light structural applications in HVAC, electrical, plumbing, and general trade work.

This screw is suited for residential and commercial trade applications where a corrosion-resistant, general-purpose fastener is required. Common installation scenarios include securing electrical enclosure panels, HVAC access covers, junction boxes, equipment brackets, and sheet metal assemblies. The 10-24 thread is a widely used coarse unified thread size that seats reliably in tapped metal, standard threaded inserts, and hex nuts. Sold in minimum order quantities of 100 per order.

Key Features

• 18-8 stainless steel construction provides corrosion resistance in damp and mildly corrosive environments
• Pan head profile delivers a low-profile bearing surface suitable for flush or near-flush mounting
• Phillips drive accepts standard No. 2 Phillips bits for fast installation with common hand or power tools
• 10-24 UNC thread is a widely stocked coarse-thread size compatible with standard tapped holes and hardware
• Bright, uncoated finish maintains dimensional consistency and thread fit without added coating buildup
• No washer included — length measurement taken under the head per standard inch fastener convention

Compatibility

Designed as a standard 10-24 UNC inch-series machine screw for general mechanical assembly. Suitable for use in any application requiring a 10-24 tapped hole or mating nut with a pan head Phillips fastener in stainless steel.

Installation Notes

Installation is performed with a No. 2 Phillips screwdriver or compatible power driver bit. Ensure the mating tapped hole or nut is clean and free of debris before driving. Do not overtorque stainless steel fasteners — 18-8 stainless is susceptible to galling when driven at excessive speed or force. Apply a small amount of anti-seize compound if the fastener may need to be removed in the future.
