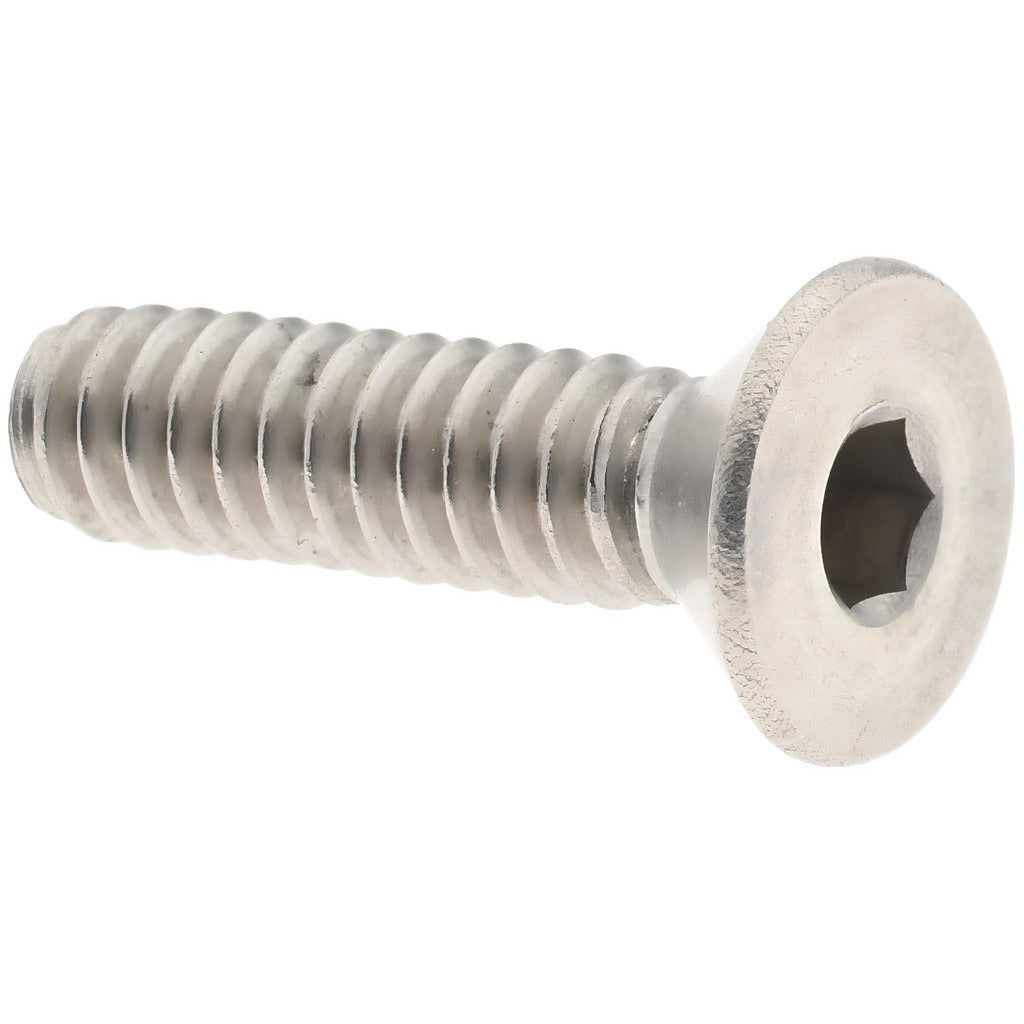

Value Collection R63009641 Flat Socket Cap Screw 10-24

Product Description

The VALUE COLLECTION R63009641 is a flat socket cap screw designed for applications requiring a flush or countersunk fastener profile. Manufactured from 18-8 stainless steel, it provides reliable corrosion resistance in moderate to mildly aggressive environments. The screw features an 82-degree flat head with a 1/8-inch hex socket drive. Thread size is 10-24 UNC with an overall length of 3/4 inches. This fastener is installed by technicians and tradespeople wherever a recessed, low-profile fastener is required in mechanical assemblies, panels, brackets, or equipment enclosures.

This screw is suited for light- to medium-duty fastening in HVAC, electrical, plumbing, and general mechanical applications. The 10-24 UNC thread pattern is a common size found in equipment panels, enclosure hardware, and structural brackets. The 82-degree flat head seats flush with the mating surface when installed in a properly chamfered or countersunk hole, eliminating protrusions that could interfere with adjoining components. The 18-8 stainless steel construction makes it appropriate for both indoor and outdoor installations where mild moisture or chemical exposure is present.

Key Features

• 82-degree flat head seats flush in countersunk holes, eliminating surface protrusions
• 1/8-inch hex socket drive for precise torque application with standard hex keys
• 18-8 stainless steel construction offers corrosion resistance in wet or humid environments
• 10-24 UNC thread standard ensures broad compatibility with tapped holes in trade equipment
• Overall length of 3/4 inches suits standard panel and bracket fastening depths

Compatibility

Designed as a standard inch-series flat socket cap screw for use in any application requiring a 10-24 UNC thread and an 82-degree countersunk flat head seating profile.

Installation Notes

Install using a 1/8-inch hex key or Allen driver. The mating hole must be chamfered to an 82-degree included angle for the flat head to seat flush. Ensure threads in the receiving material are clean and undamaged before driving. Do not overtorque stainless steel fasteners, as galling can occur; applying an appropriate anti-seize compound is recommended in stainless-to-stainless assemblies.
