Value Collection R57900865 Slotted Spring Pin 24mm 12mm

Product Description

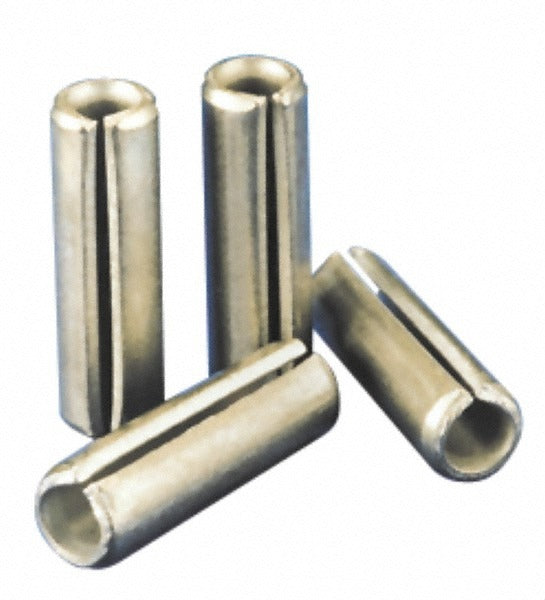

The VALUE COLLECTION R57900865 is a slotted spring pin manufactured from 1070-1080 grade carbon steel with a plain finish. Slotted spring pins — also called roll pins — are cylindrical fasteners with a longitudinal slot that allows radial compression during installation, creating a secure interference fit within a drilled hole. This pin measures 24 mm in overall length and 12 mm in diameter. It is used in mechanical assemblies to retain shafts, secure linkages, or align components. Machinists, millwrights, and mechanical assembly technicians are the primary installers of this fastener type.

This slotted spring pin is suited for general industrial and mechanical applications where a metric-dimensioned, steel retaining pin is required. The 1070-1080 carbon steel construction provides solid shear strength for moderate-load retention tasks. The plain finish is appropriate for dry or lightly lubricated environments. It is sold individually but is subject to a minimum order quantity of 25 pieces per order, making it well-suited for production runs, maintenance stock, or shop inventory replenishment.

Key Features

• Slotted design compresses radially on installation for a secure interference fit without adhesive
• 1070-1080 carbon steel construction for reliable shear strength in general-duty applications
• 24 mm overall length with 12 mm diameter — metric dimensioned for metric bore applications
• Plain finish suitable for dry or lightly lubricated mechanical environments
• Does not meet military specifications — intended for commercial and industrial use

Compatibility

Designed for use in general industrial and mechanical assemblies requiring a metric slotted spring pin with a 12 mm diameter and 24 mm length in 1070-1080 carbon steel.

Installation Notes

Slotted spring pins are installed by machinists or mechanical technicians using a pin punch and hammer or an arbor press. The receiving hole diameter should be sized to the pin's nominal diameter per applicable tolerance standards to ensure proper interference fit. De-burr the hole prior to installation to prevent galling or cracking the pin slot. Remove all power and motion from the assembly before installing or extracting spring pins in live machinery.
