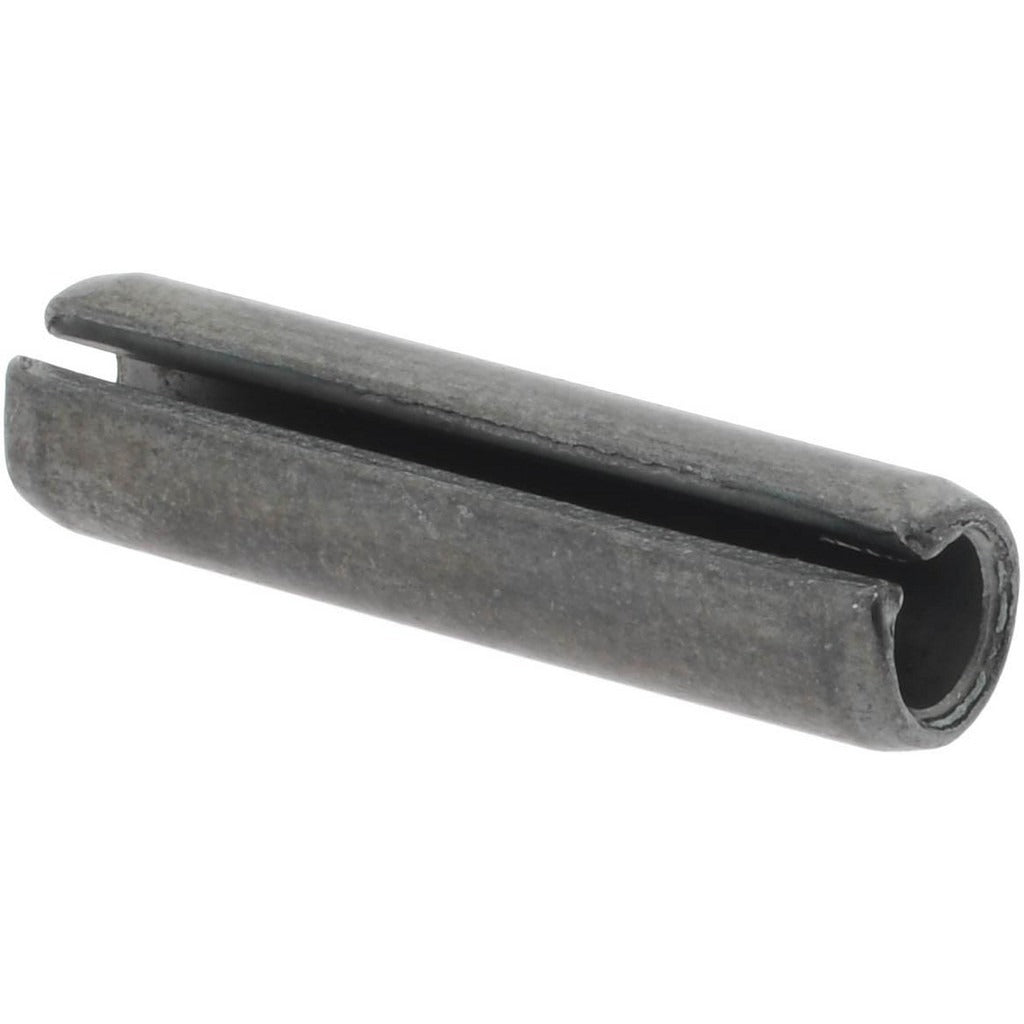

Value Collection R57900735 Slotted Spring Pin 24mm 6mm

Product Description

The VALUE COLLECTION R57900735 is a slotted spring pin manufactured from 1070-1080 grade steel with a plain finish. Spring pins are used to align, retain, or secure components within assemblies by elastically compressing during insertion and expanding against the bore wall to maintain a firm hold. This pin measures 24 millimeters in overall length and 6 millimeters in diameter, making it well-suited for metric fastening applications in light to medium-duty mechanical assemblies. Installation requires no threading or adhesive. The slotted design allows radial compression, enabling the pin to accommodate minor bore tolerance variation while maintaining positive retention.

Slotted spring pins of this type are commonly used in manufacturing, maintenance, and assembly operations across industrial, agricultural, and mechanical equipment sectors. They are appropriate for use in shaft-to-hub connections, hinge assemblies, gear and pulley retention, and similar applications where a removable or semi-permanent pin is needed. This pin does not meet military specifications and is intended for standard commercial and industrial use. It is sold individually but subject to a minimum order quantity of 100 units.

Key Features

• Slotted design allows radial compression for positive bore retention without threading
• 1070-1080 grade steel construction provides reliable strength for standard industrial loads
• Plain finish suitable for dry or lightly lubricated environments
• Metric dimensions: 24 millimeters long, 6 millimeters diameter
• No military specification requirement — designed for commercial and industrial use

Compatibility

Designed for use in standard metric bore assemblies requiring a 6-millimeter slotted spring pin. Suitable for general commercial and industrial mechanical assemblies where a non-military-spec metric spring pin is appropriate.

Installation Notes

Slotted spring pins are typically installed by machinists, millwrights, or mechanical assemblers using a pin punch and mallet or an arbor press. Ensure the receiving bore is clean and free of burrs before installation. The pin should be driven squarely into the bore to prevent cocking or deformation. Removal is accomplished with a punch of appropriate diameter driven from the exposed end.
