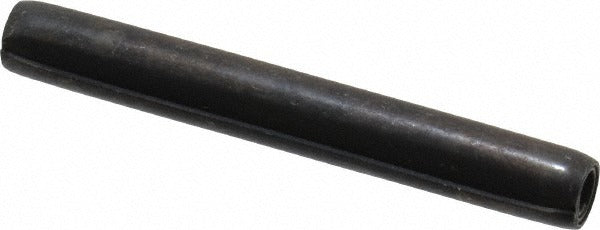

Value Collection R57700841 Coiled Spring Pin 7/32 in

Product Description

The VALUE COLLECTION R57700841 is a coiled spring pin designed for use in mechanical assemblies requiring a reliable, self-retaining fastener. The coiled design allows the pin to compress during installation and expand against the bore wall, creating a secure interference fit without the need for additional fasteners or adhesives. Manufactured from 1070-1090 alloy steel with a plain finish, this pin measures 0.2188 inches (7/32 inch) in diameter and 1-3/4 inches in overall length. It is suited for production and maintenance applications where consistent pin retention and controlled flexibility under load are required.

Coiled spring pins are commonly installed in a wide range of industrial and mechanical applications, including alignment fixtures, shaft assemblies, linkages, and hinged mechanisms across general manufacturing, equipment maintenance, and machine repair environments. The 0.2188-inch diameter and 1-3/4-inch length make this pin compatible with standard 7/32-inch nominal bore applications. Installations are measured in the inch system of measurement. This pin does not meet military specifications and is intended for commercial and industrial use.

Key Features

• Coiled construction provides a self-retaining interference fit in the host bore
• 0.2188 inch (7/32 inch) diameter for use in standard nominal 7/32-inch bores
• 1-3/4 inch overall length suits moderate-depth pin hole applications
• 1070-1090 alloy steel construction offers strength and durability in mechanical assemblies
• Plain finish with no coating for straightforward dimensional consistency
• Inch-system dimensioning for compatibility with standard U.S. tooling and gauging

Compatibility

Designed as a standard coiled spring pin for use in any mechanical assembly requiring a 7/32-inch nominal diameter pin hole and a 1-3/4-inch engagement depth. Verify host material, bore tolerance, and load requirements before installation.

Installation Notes
