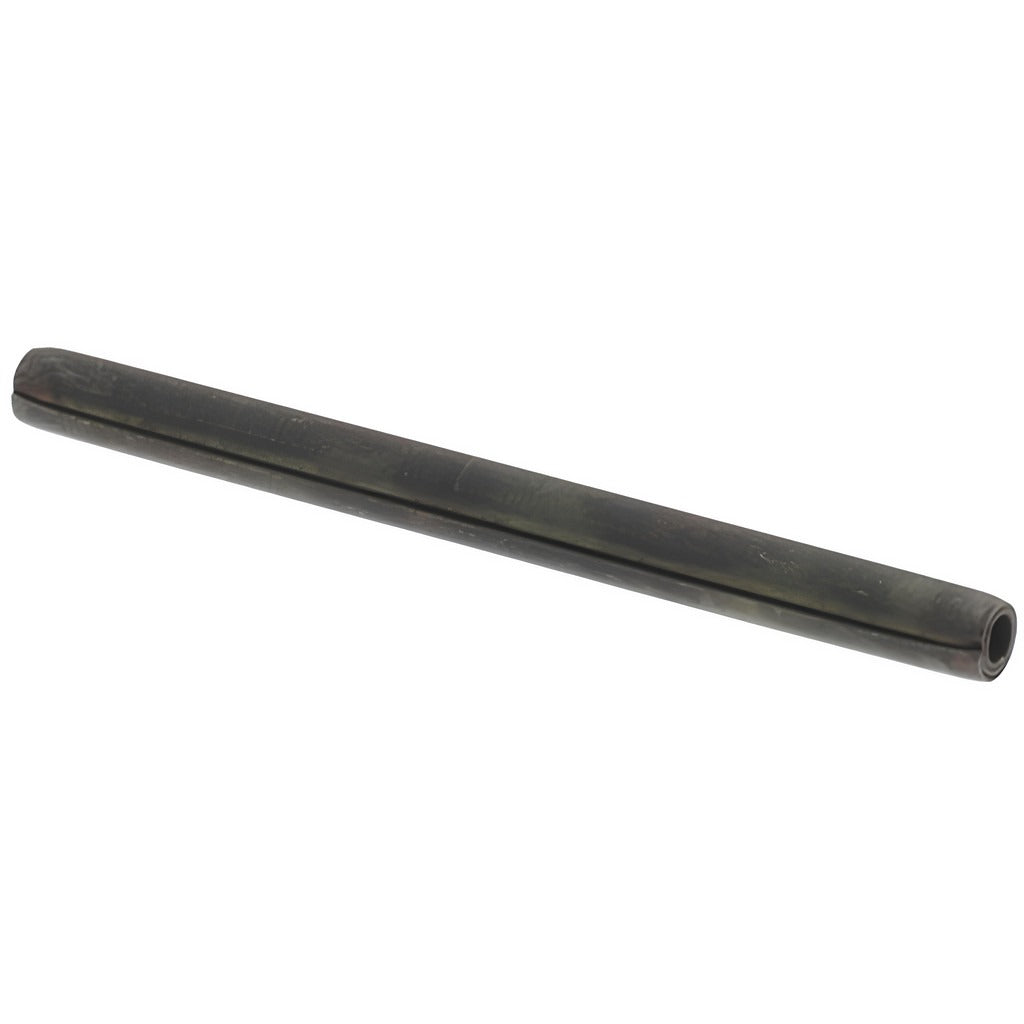

Value Collection R57700761 Coiled Spring Pin 0.0938 in 1.25 in

Product Description

The VALUE COLLECTION R57700761 is a coiled spring pin sized at 0.0938 inches in diameter and 1.25 inches in overall length. Coiled spring pins are slotted cylindrical fasteners that compress during installation and exert radial pressure against the bore wall, creating a secure, vibration-resistant fit without additional hardware. This pin is manufactured from 1070-1090 grade alloy steel with a plain finish, offering solid shear strength for general industrial and mechanical fastening applications. It is installed by maintenance technicians, machinists, and mechanical assemblers working across a wide range of equipment and assembly environments.

This coiled spring pin is suited for use in industrial machinery, jigs and fixtures, hinges, linkages, and mechanical assemblies where a reliable removable or permanent pin retention solution is required. The 3/32 inch fractional diameter fits standard 0.0938 inch bore applications. It does not meet military specifications and is intended for commercial-grade applications. Each unit is sold individually, with a minimum order quantity of 100 pieces.

Key Features

• Coiled spring design provides radial retention force without permanent deformation of the bore
• 0.0938 inches (3/32 inch) diameter fits standard commercial bore tolerances
• 1.25 inches overall length for medium-depth pin applications
• 1070-1090 grade alloy steel construction for consistent shear and fatigue resistance
• Plain finish with no coating or plating for straightforward dimensional accuracy
• Does not meet military specifications — intended for commercial and industrial use

Compatibility

Designed as a commercial-grade coiled spring pin for use in standard 0.0938 inch diameter bore applications across general industrial, mechanical assembly, and maintenance contexts.

Installation Notes

Coiled spring pins are typically installed using a pin driver or arbor press; hammer installation with a properly sized punch is also common. Always ensure the bore diameter matches the pin nominal diameter before driving to avoid bore damage. Support the workpiece adequately to prevent deflection during installation. Removal is performed with a punch and hammer or a pin extractor tool.
