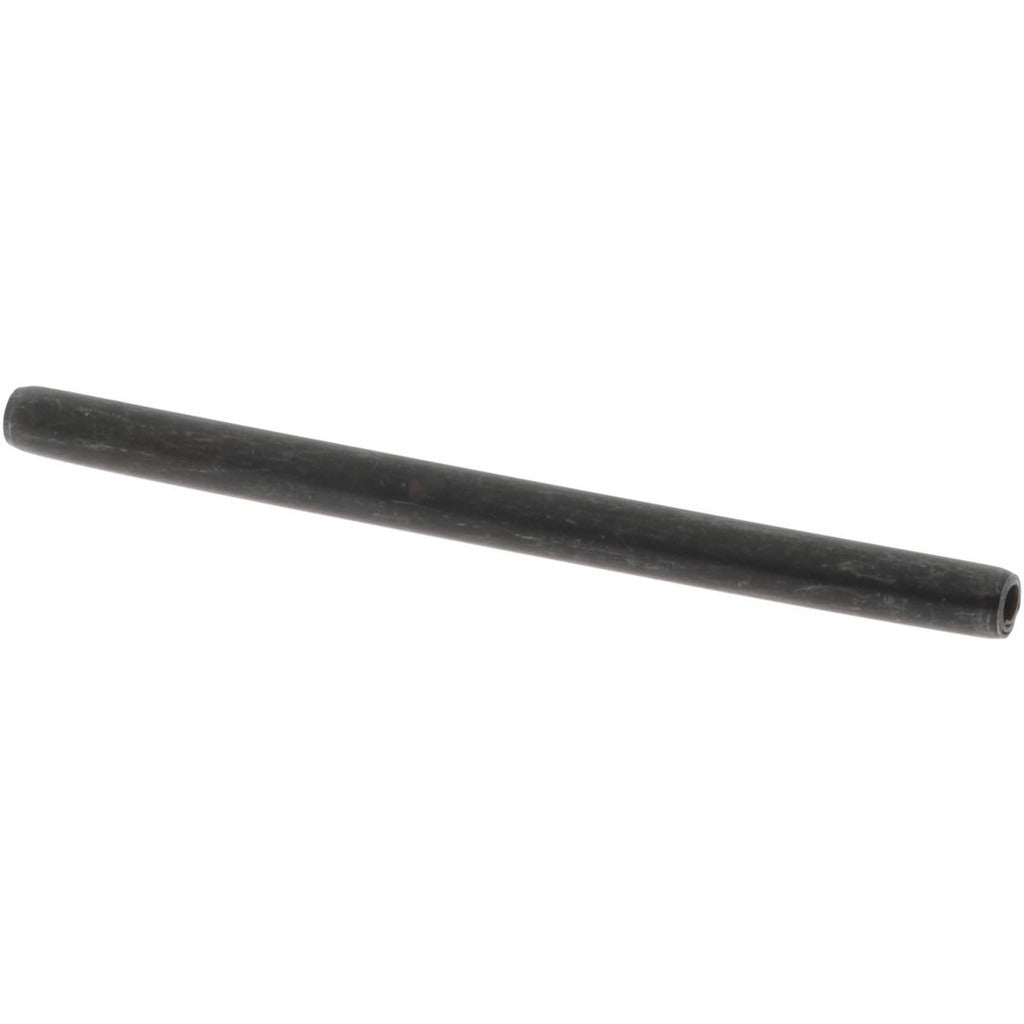

Value Collection R57700737 Coiled Spring Pin 0.0625 in

Product Description

The VALUE COLLECTION R57700737 is a coiled spring pin designed for use in mechanical assemblies requiring reliable radial fastening. Manufactured from 1070-1090 alloy steel with a plain finish, this pin measures 0.0625 inches in diameter and 1 inch in overall length. Coiled spring pins function by compressing radially upon insertion, distributing stress across the coil rather than concentrating it at a single point, which improves fatigue resistance over solid or slotted alternatives. This pin is installed by machinists, assemblers, and maintenance technicians working on shafts, linkages, brackets, and similar mechanical connections.

This coiled spring pin is suited for light-duty to general-purpose industrial and mechanical applications where a 1/16-inch diameter pin is required. Common install scenarios include pivot points, hinge assemblies, alignment applications, and retention of components on shafts. Its 1-inch length provides adequate grip depth for most standard material thicknesses in that pin diameter range. This pin does not meet military specifications and is intended for commercial and industrial use.

Key Features

• 0.0625-inch (1/16-inch) diameter for use in precision-drilled holes at that size
• 1-inch overall length suits a wide range of standard assembly thicknesses
• 1070-1090 alloy steel construction provides good strength and hardness
• Plain finish — no coating or plating that could affect dimensional tolerance
• Coiled design distributes radial stress for improved fatigue life over slotted pins
• Sold individually; minimum order quantity is 100 units

Compatibility

Designed as a standard coiled spring pin for general mechanical and industrial assemblies requiring a 0.0625-inch diameter, 1-inch long pin in inch-system applications.

Installation Notes

Coiled spring pins are typically installed by machinists or mechanical assemblers using a pin punch and hammer or an arbor press. Ensure the receiving hole is drilled and reamed to the correct diameter per applicable tolerance standards before driving the pin. Always wear appropriate eye protection when driving pins. Pins should be removed with a punch of the correct diameter to avoid damaging the host material or the bore.
