Value Collection R57700463 Slotted Spring Pin 18-8 Ss

Product Description

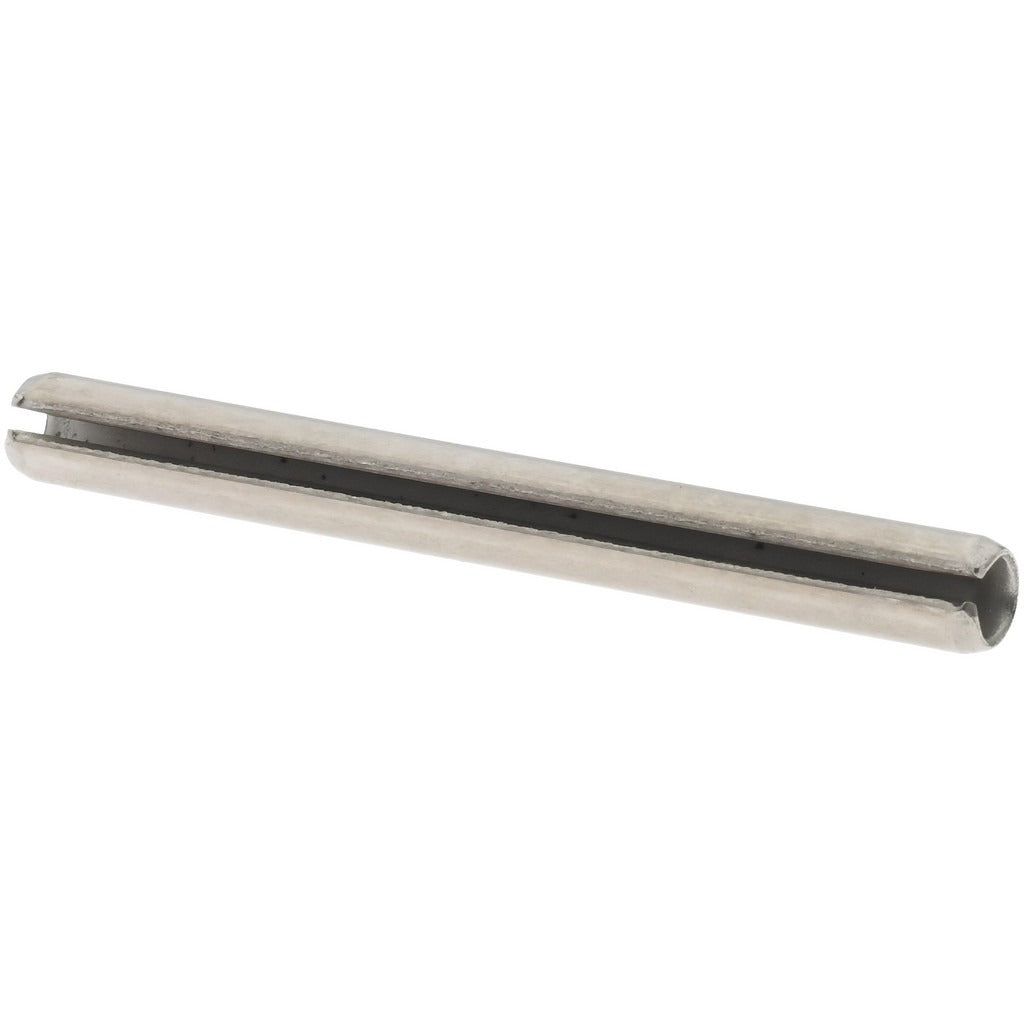

The VALUE COLLECTION R57700463 is a slotted spring pin manufactured from 18-8 stainless steel, designed to provide reliable fastening and alignment in mechanical assemblies. This pin measures 1-1/4 inches in overall length with a 1/8 inch diameter. The slotted design allows the pin to compress during installation and expand to create a tight, vibration-resistant fit within the host material. Slotted spring pins are commonly installed by machinists, millwrights, and maintenance technicians working on machinery, fixtures, and equipment requiring precise component alignment and retention.

This pin is suited for use in light to medium-duty mechanical assemblies where corrosion resistance is a priority. The 18-8 stainless steel construction makes it appropriate for environments with exposure to moisture or mild chemicals. Typical applications include hinge assemblies, drive shafts, gear and pulley retention, and general-purpose pin fastening in both industrial and commercial settings. Sold individually, with a minimum order quantity of 100 pieces.

Key Features

• 18-8 stainless steel construction for corrosion resistance in wet or mildly corrosive environments
• Slotted design allows radial compression during installation for a secure interference fit
• 1-1/4 inch overall length for compatibility with standard-depth bored holes
• 1/8 inch diameter for precise alignment and retention in matching bore sizes
• Inch measurement system for straightforward integration with standard tooling and gauges

Compatibility

Designed as a general-purpose slotted spring pin for use in standard inch-measurement mechanical assemblies requiring a 1/8 inch diameter pin hole and 1-1/4 inch pin depth.

Installation Notes

Slotted spring pins are installed by machinists or maintenance technicians using a pin punch and hammer or an arbor press. Always ensure the receiving bore is clean, properly sized, and deburred before driving the pin. Power down and de-energize all equipment before servicing any assembly containing these pins. Do not reuse pins that have been removed, as the slotted body may be fatigued and unable to maintain proper retention force.
