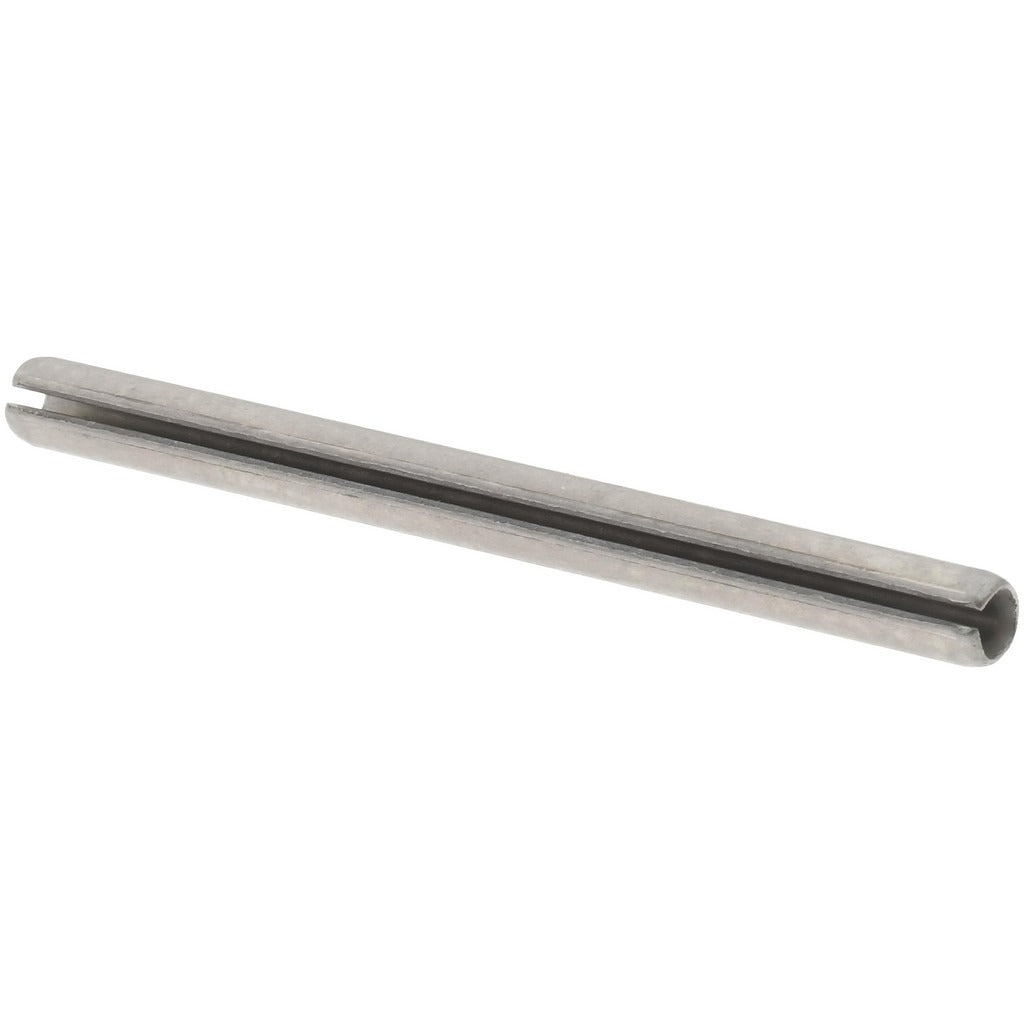

Value Collection R57700399 Slotted Spring Pin 1 in 18-8 Ss

Product Description

The VALUE COLLECTION R57700399 is a slotted spring pin manufactured from 18-8 stainless steel. This pin measures 1 inch in overall length with a 5/64-inch diameter. Slotted spring pins — also called roll pins or slotted drive pins — use a split, cylindrical design that compresses on insertion and exerts radial pressure against the bore wall to hold position without adhesives or threading. The 18-8 stainless steel construction provides corrosion resistance suitable for moisture-exposed or mildly corrosive service environments. Maintenance technicians, millwrights, and assembly professionals use these fasteners in mechanical linkages, shaft-to-hub connections, and pivot assemblies across industrial and trade applications.

This slotted spring pin is suited for light-duty fastening tasks where a removable, self-retaining pin is required. Common applications include HVAC damper linkages, pump assemblies, and general mechanical subassemblies where vibration resistance and easy disassembly are priorities. The inch measurement system designation makes it compatible with standard inch-dimensioned bores and tooling. This item is sold individually; minimum order quantity is 100 pieces per order.

Key Features

• 18-8 stainless steel construction provides corrosion resistance in wet or mildly corrosive environments
• Slotted design compresses on insertion for a secure, self-retaining fit without fasteners
• 1-inch overall length in the inch measurement system for compatibility with standard tooling
• 5/64-inch diameter suitable for small-bore mechanical linkage and pivot applications
• Does not meet military specifications — intended for commercial and trade use

Compatibility

Designed as a general-purpose slotted spring pin for standard inch-dimensioned bores in commercial and industrial mechanical assemblies.

Installation Notes

Installation is performed using a pin punch and hammer or a press tool sized to the pin diameter; never drive pins with an oversized punch that contacts the bore edge. Ensure the receiving bore is clean and free of burrs before installation. To remove, use a punch slightly smaller than the pin diameter driven from one end. Always de-energize and lock out equipment before servicing any mechanical assembly containing these pins.
