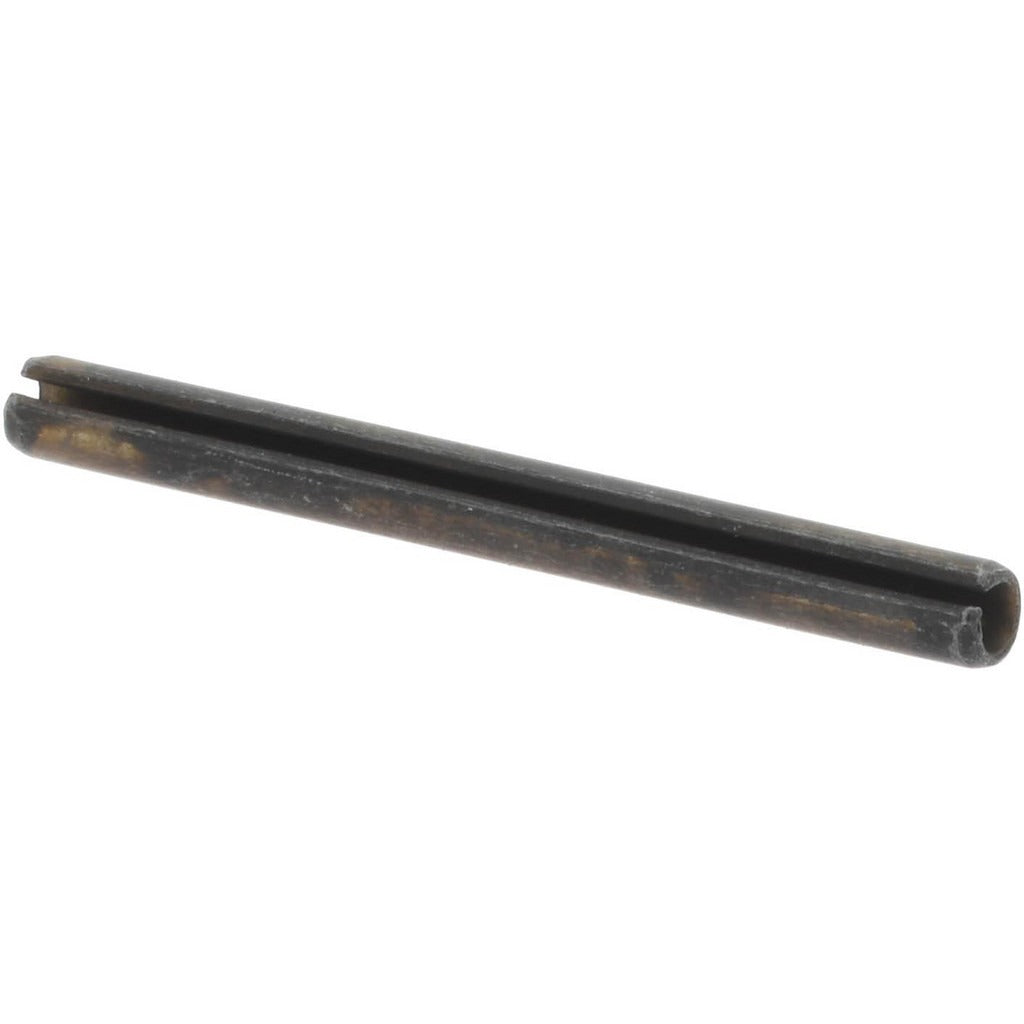

Value Collection R57700111 Slotted Spring Pin 1070-1090 Steel

Product Description

The VALUE COLLECTION R57700111 is a slotted spring pin designed for use in mechanical assemblies requiring a secure, removable fastener in a compact form factor. Measuring 0.0938 inches in diameter and 1 inch in overall length, this pin is manufactured from 1070-1090 alloy steel with a plain finish. The slotted design allows the pin to compress during installation and exert radial pressure against the bore wall, creating a firm hold without adhesives or secondary fasteners. It is installed by machinists, maintenance technicians, and assembly workers in industrial and mechanical applications.

This pin is suited for use in shafts, linkages, hinges, and other mechanical connections where a spring pin is called for by the assembly design. The 1070-1090 alloy steel construction provides adequate hardness and spring tension for general-purpose industrial use. The plain finish is appropriate for indoor or protected environments. This part does not meet military specifications and is intended for commercial and industrial applications.

Key Features

• Slotted spring pin design compresses for press-fit installation into a drilled bore
• Diameter: 0.0938 inches (3/32 inch fractional equivalent)
• Overall length: 1 inch
• Material: 1070-1090 alloy steel for reliable spring tension and hardness
• Plain finish suitable for protected indoor mechanical environments
• Inch measurement system; does not meet military specifications

Compatibility

Designed as a standard-dimension slotted spring pin for use in mechanical assemblies requiring a 0.0938-inch diameter bore and 1-inch pin length per engineering drawings or OEM specifications.

Installation Notes

Installation is performed by driving the pin into a drilled through-hole or blind hole of the appropriate diameter using a pin punch and hammer or an arbor press. Power down or de-energize any equipment before servicing assemblies that contain spring pins. Ensure the bore diameter matches the pin nominal size to achieve proper radial retention. Removal is accomplished with a pin punch driven from the accessible end of the bore.
