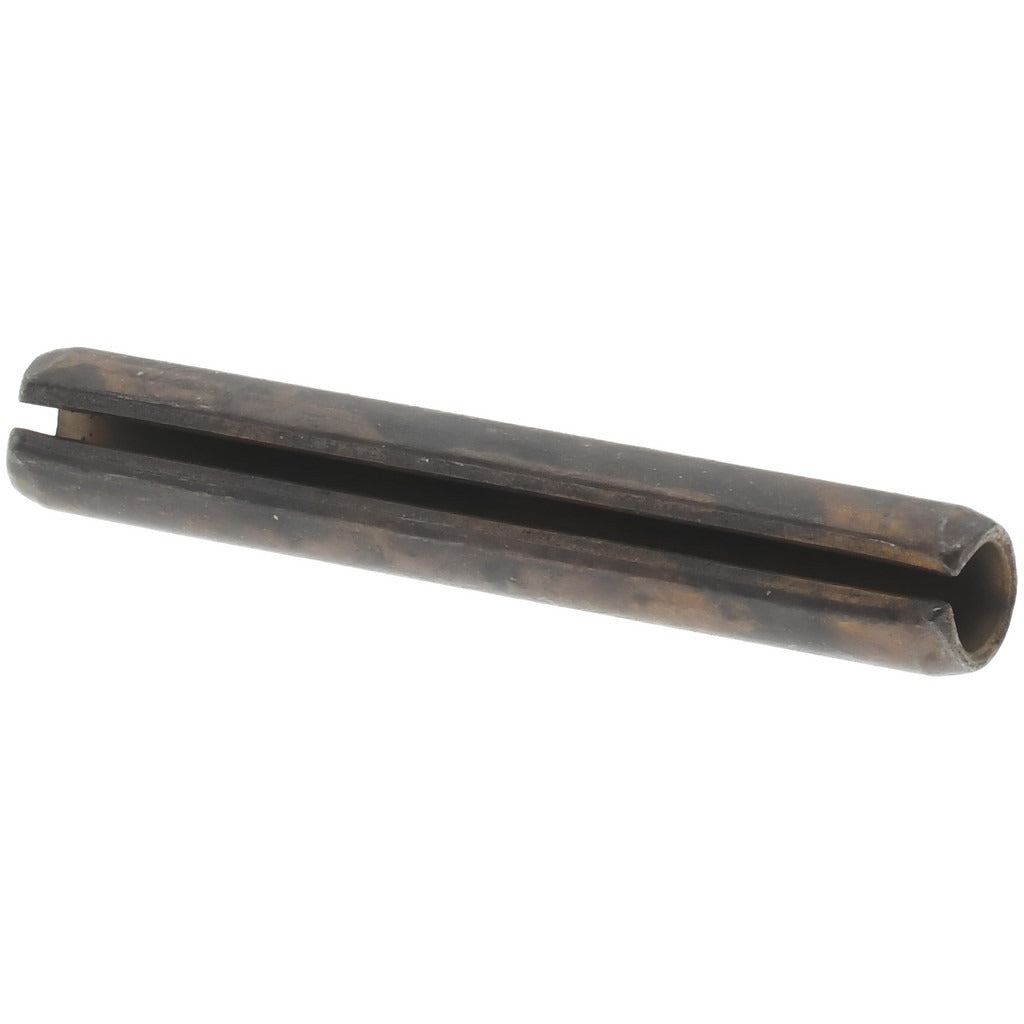

Value Collection R57700105 Slotted Spring Pin Alloy Steel

Product Description

The VALUE COLLECTION R57700105 is a slotted spring pin manufactured from 1070/1090 alloy steel with a plain finish. Slotted spring pins are hollow, cylindrical fasteners with a longitudinal slot that allows radial compression during insertion. This design creates a spring-back retention force inside the host bore, locking the pin in place without secondary fasteners. The pin measures 0.0938 inches in diameter and 0.625 inches in overall length. It is sized in the inch measurement system and is a standard fit for light-duty to medium-duty mechanical assemblies. Machinists, maintenance technicians, and assembly line workers install these pins as pivots, stops, locking elements, and alignment features.

Slotted spring pins in this size class are used across a wide range of industrial and mechanical applications including shaft-to-hub retention, linkage assemblies, hinges, and jig fixtures. The 0.0938 inch (3/32 inch fractional equivalent) diameter suits smaller bore applications found in light machinery, hand tools, agricultural equipment, and general industrial assemblies. The plain finish is appropriate for indoor and low-moisture environments. These pins are sold in a minimum order quantity of 500 units, making them suited for production assembly, MRO stocking, and batch manufacturing operations.

Key Features

• Slotted design allows radial compression for secure interference fit in drilled bores
• 1070/1090 alloy steel construction provides strength and spring-back retention force
• 0.0938 inch diameter with 0.625 inch overall length fits standard 3/32 inch bore applications
• Plain finish suits dry or low-humidity indoor installations
• Inch measurement system; does not meet military specifications
• Sold in multiples of 500 for production and MRO stocking needs

Compatibility

Designed as a standard slotted spring pin for general mechanical assemblies requiring a 0.0938 inch diameter pin in the inch measurement system. Verify bore diameter and depth in the host component before installation.

Installation Notes

Slotted spring pins are typically installed by maintenance technicians or machinists using a pin punch and hammer or an arbor press. Always ensure the bore diameter and depth match the pin specifications before driving the pin. Do not reuse a spring pin that has been removed, as repeated compression cycling reduces retention force. Follow applicable ASME or shop-standard procedures for press-fit fastener installation.
