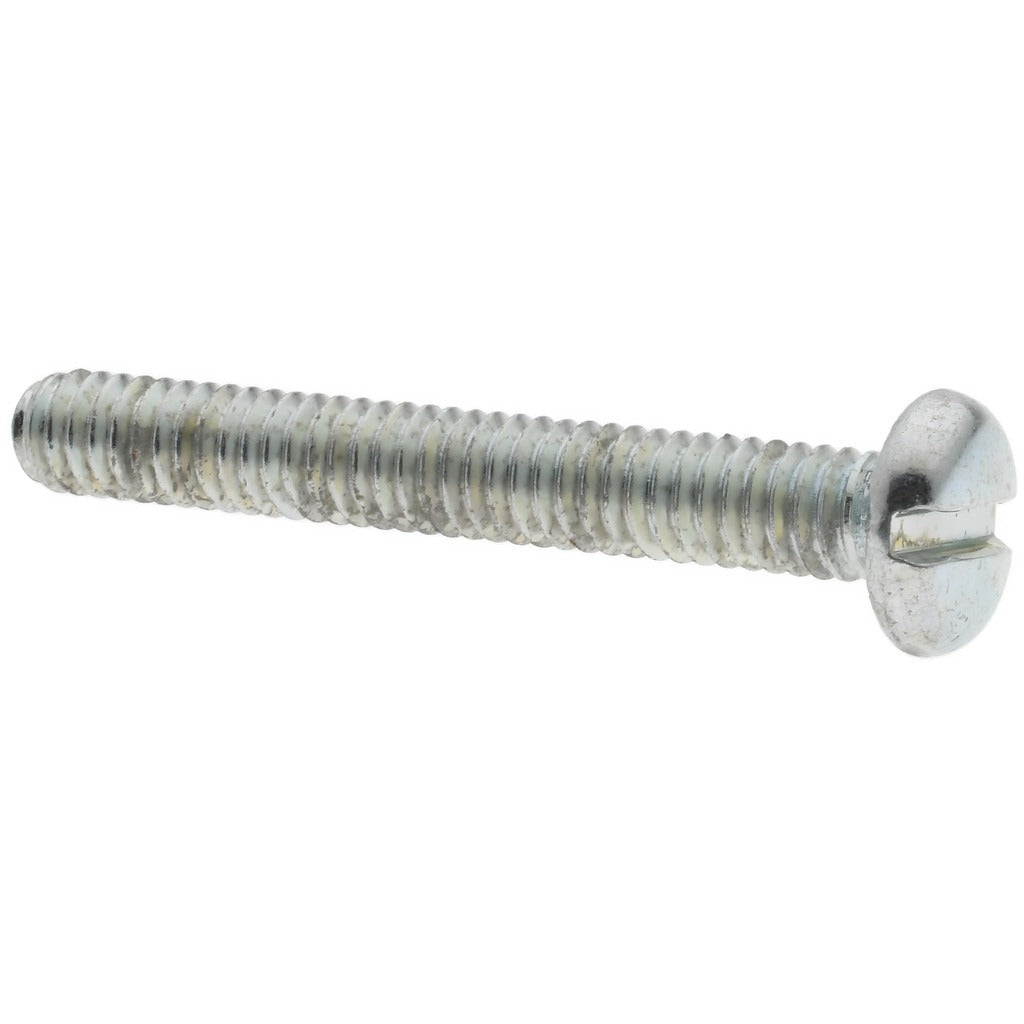

Value Collection R52001311 Machine Screw 8-32 Pan Head

Product Description

The VALUE COLLECTION R52001311 is a zinc-plated steel machine screw conforming to ASME B18.6.3 and SAE J82 standards. It features an 8-32 Unified Coarse thread, a pan head profile, and a slotted drive. The screw measures 1-1/4 inches in length under the head. Manufactured from steel at material grade J82, the zinc finish provides basic corrosion resistance for general-purpose fastening applications. This fastener ships in a package quantity of 1 with a minimum order quantity of 100 units, making it appropriate for maintenance stock, production assembly, and service applications in HVAC, electrical, and mechanical panel work.

This screw is suited for light-gauge sheet metal assemblies, electrical enclosures, junction boxes, equipment panels, and general mechanical component attachment where an 8-32 threaded hole or tapped clearance is present. The pan head offers a low-profile, wide-bearing surface that distributes clamping load across thin materials. Slotted drive allows use with a standard flat-blade screwdriver, which is common in field service kits. Applications span residential and commercial equipment installation and service across trades that regularly encounter 8-32 fastener specs.

Key Features

• 8-32 Unified Coarse thread for broad compatibility with standard tapped holes and hex nuts
• Pan head profile provides a flat underside and rounded top with a wide bearing surface
• Slotted drive accepts standard flat-blade screwdrivers for field serviceability
• Zinc-plated steel construction offers basic corrosion resistance for indoor and light-duty applications
• Conforms to ASME B18.6.3 and SAE J82 dimensional and material standards
• Length measured under head at 1-1/4 inches, no washer included

Compatibility

Designed as a standard 8-32 machine screw for use in any application requiring an ASME B18.6.3 compliant pan head slotted fastener in that thread size and length.

Installation Notes

Install using a flat-blade screwdriver sized to the slot width to avoid camming out and damaging the drive. De-energize any electrical equipment before fastening screws in panel or enclosure applications in compliance with NFPA 70 lockout/tagout requirements. Do not overtighten into tapped sheet metal holes, as stripping is common with fine-thread 8-32 fasteners in thin-gauge materials. Verify thread engagement depth meets the assembly specification before applying final torque.
