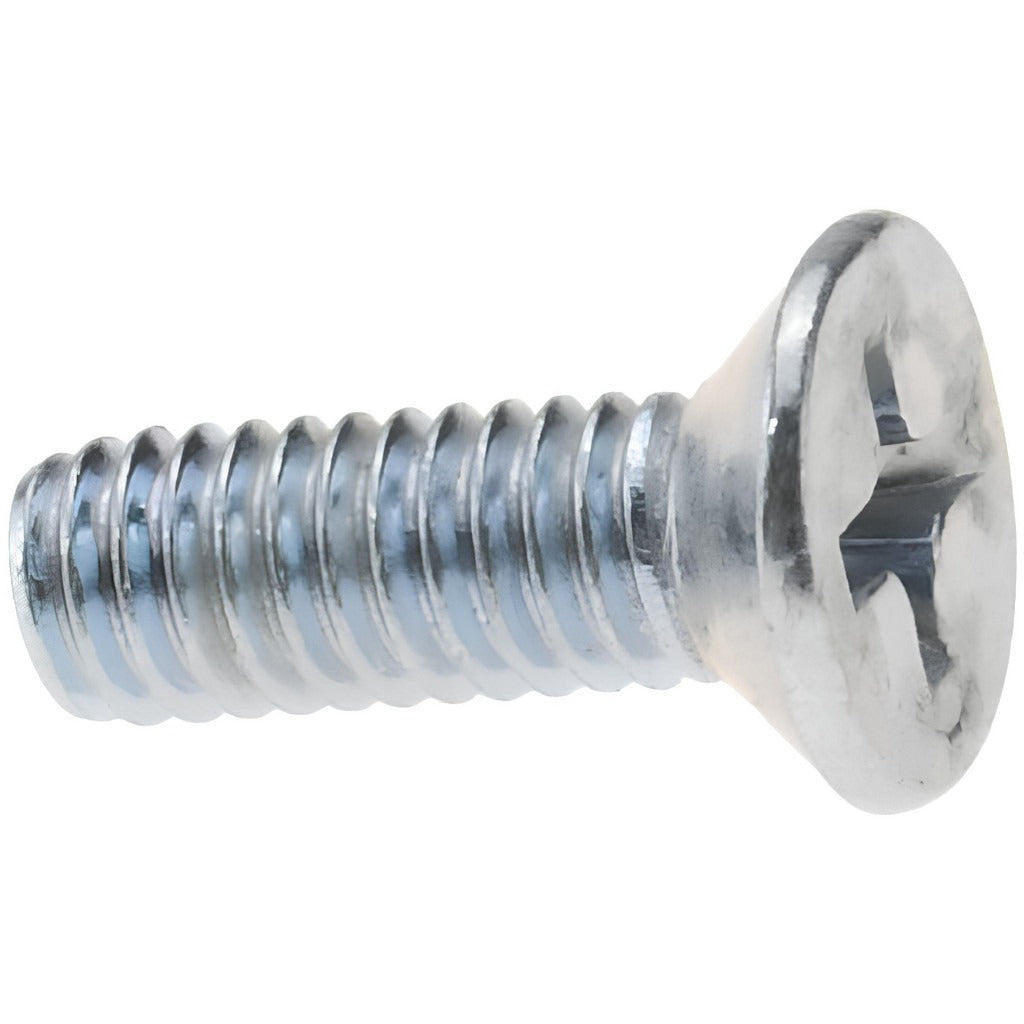

Value Collection R52001303 M4x0.7 Flat Head Phillips Screw

Product Description

The VALUE COLLECTION R52001303 is a metric flat head Phillips machine screw designed for general-purpose mechanical assembly. Manufactured to Grade 4.8 steel with a zinc finish for basic corrosion resistance, this screw meets DIN 965 standards for flat head Phillips fasteners. The M4x0.7 thread size with a 12.00 mm overall length makes it well suited for light-duty clamping and fastening applications where a flush or countersunk surface finish is required. The zinc coating provides protection in mild environments. This fastener is a standard item used by maintenance technicians, machine assemblers, and industrial tradespeople across a wide range of equipment and fixture applications.

This screw is appropriate for use in light-gauge metal, plastic, and composite assemblies where an M4 metric thread is specified. The flat head profile seats flush with or below the workpiece surface when used with a properly countersunk hole. It is commonly used in control panel assembly, equipment enclosures, fixture fabrication, and general mechanical maintenance. The Phillips drive allows for installation with standard Phillips screwdrivers or power drivers equipped with a PH2 bit.

Key Features

• M4x0.7 thread size per DIN 965 standard for consistent fit with metric hardware
• 12.00 mm overall length with no washer — overall length equals length under head
• Flat countersunk head for flush or below-surface installation
• Phillips drive compatible with PH2 screwdrivers and power drivers
• Grade 4.8 steel construction for reliable strength in light-duty applications
• Zinc finish provides basic corrosion resistance in mild service environments

Compatibility

Designed as a standard DIN 965 metric machine screw for use wherever an M4x0.7 flat head Phillips fastener is specified in mechanical or light industrial assemblies.

Installation Notes

Installation should be performed by a qualified technician or assembler familiar with metric fastener specifications. Ensure the receiving hole is properly tapped to M4x0.7 and countersunk to the correct angle for a DIN 965 flat head before driving the screw. Do not exceed the torque capacity appropriate for a Grade 4.8 M4 fastener — refer to published torque tables for the specific joint material and lubrication condition. Avoid use in high-vibration or high-temperature environments without confirming suitability for Grade 4.8 steel.
