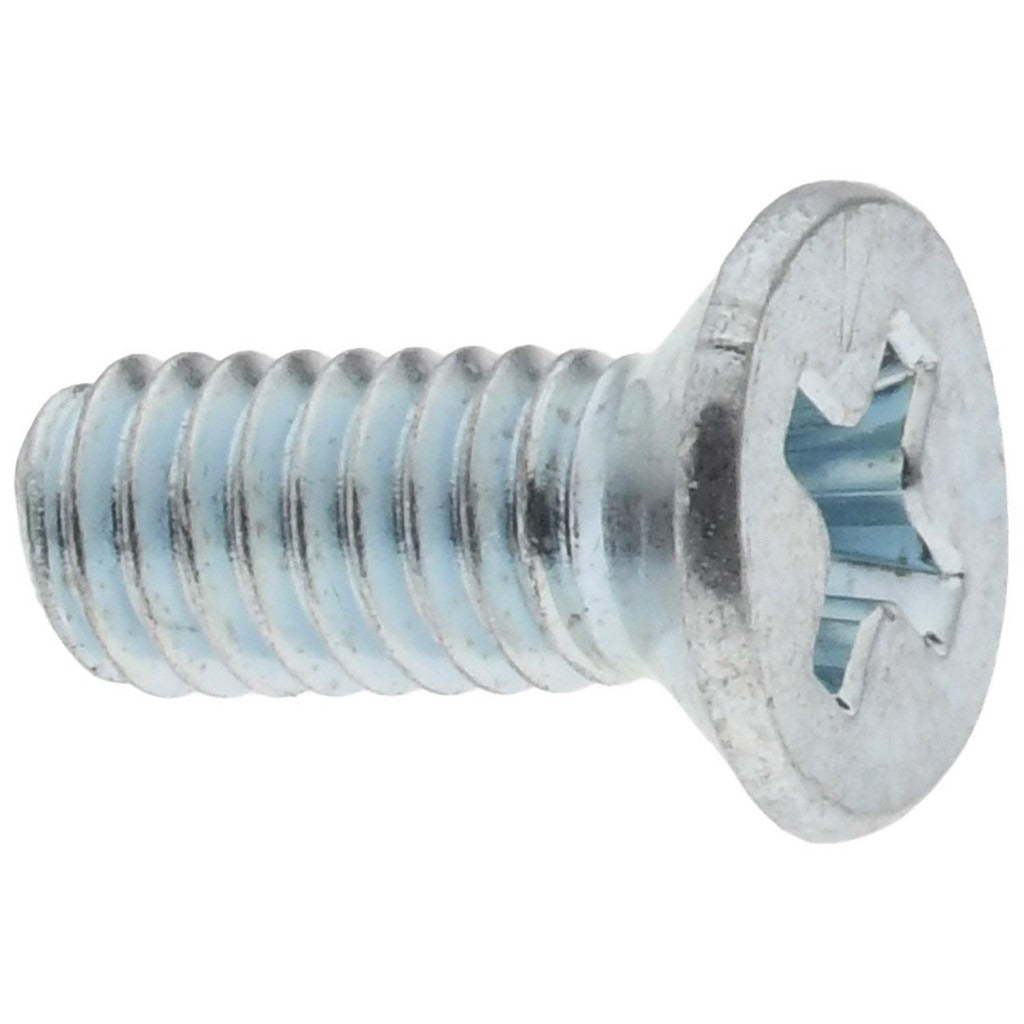

Value Collection R52001302 M4x0.7 Flat Head Phillips Screw

Product Description

The VALUE COLLECTION R52001302 is a metric machine screw designed for general fastening applications in light fabrication, equipment assembly, and maintenance work. It features a flat head profile with a Phillips drive recess, allowing the installed head to sit flush with or below the surface of the mating material. The screw is manufactured from Grade 4.8 steel and finished with a zinc plating for basic corrosion resistance. Thread size is M4x0.7 with an overall length of 10 millimeters. This fastener conforms to DIN 965 standards. It is suited for use by maintenance technicians, assemblers, and trade professionals working with metric-spec equipment and enclosures.

This screw is a standard metric fastener used across a wide range of light-duty assembly and repair applications, including electrical panel enclosures, HVAC equipment housings, plumbing fixture brackets, and general mechanical assemblies. Its flat head countersunk profile makes it well suited for installations where a flush surface finish is required. The M4 thread size and 10 mm length target thin-gauge sheet metal and light structural components. Sold in multiples of 100 pieces per order.

Key Features

• Flat countersunk head allows flush installation with the mating surface
• Phillips drive for compatibility with standard screwdrivers and power drivers
• M4x0.7 metric thread for use with metric-spec components and hardware
• Grade 4.8 steel construction provides adequate tensile strength for light-duty fastening
• Zinc plating offers basic corrosion protection in dry or mildly humid environments
• Conforms to DIN 965 fastener standard for consistent dimensional compliance

Compatibility

Designed as a DIN 965-compliant metric machine screw suitable for M4x0.7 threaded holes in light fabrication, equipment enclosures, and general mechanical assemblies requiring a flat countersunk head profile.

Installation Notes

Installation is performed by hand or power driver using a Phillips bit sized for M4 fasteners. Verify the receiving hole is properly countersunk to the DIN 965 head angle before driving to avoid surface distortion. Do not overtorque; Grade 4.8 fasteners have lower proof load ratings than higher-grade alternatives. For electrical enclosures, confirm all circuits are de-energized before performing any hardware work near live components.
