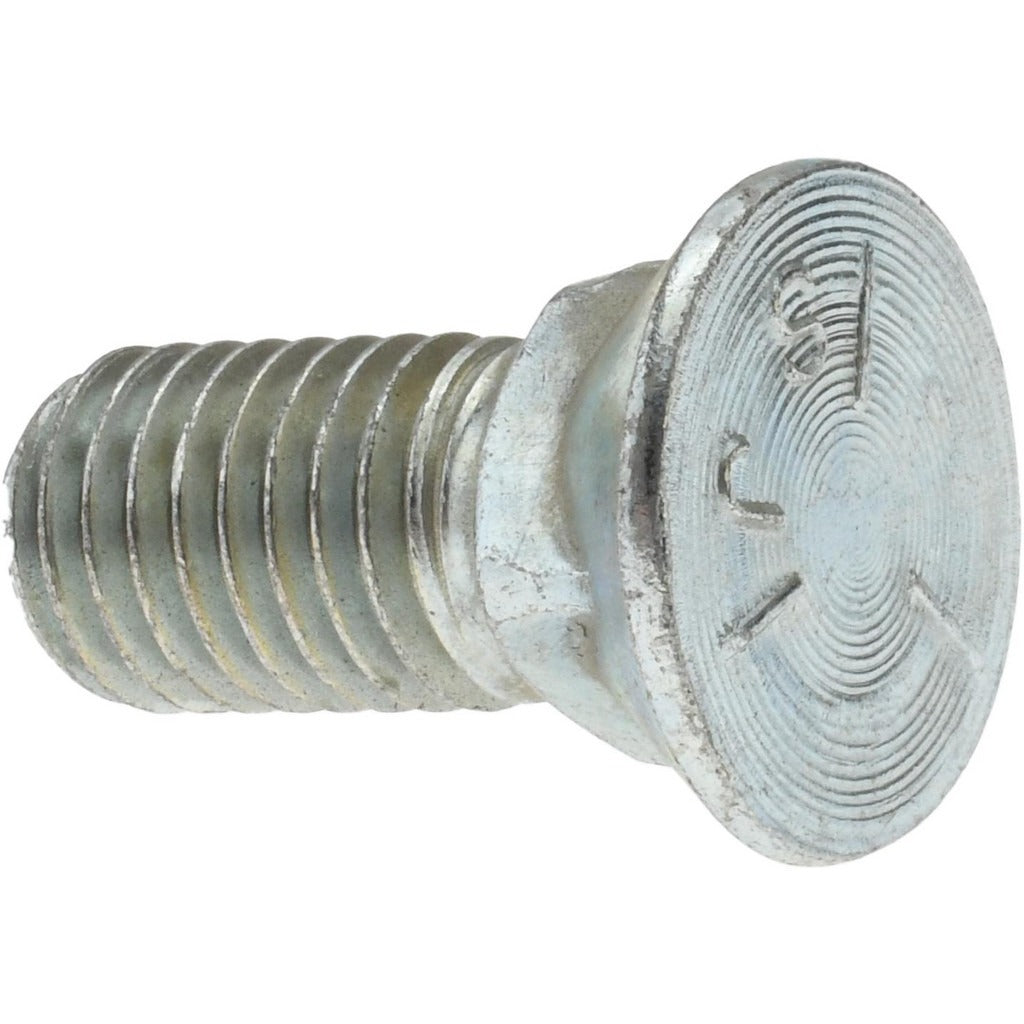

Value Collection R52001249 Plow Bolt 5/8-11 Unc Grade 5

Product Description

The VALUE COLLECTION R52001249 is a flat-head plow bolt designed for heavy-duty fastening applications where a flush or countersunk head profile is required. Manufactured from Grade 5 steel with a zinc-plated finish for corrosion resistance, this bolt features a 5/8-11 UNC thread and an overall length of 1-1/2 inches. It conforms to ASME B18.9 and SAE J429 standards, making it a code-compliant choice for structural and equipment fastening tasks. Installation is typically performed by mechanics, equipment technicians, and maintenance professionals working on earthmoving, agricultural, or industrial machinery where plow bolts are a standard hardware specification.

Plow bolts are commonly used in agricultural equipment, construction machinery, and earthmoving attachments where the flat head must sit flush with or below a wear surface. This part is suited for use in blade assemblies, bucket edges, and similar high-wear attachment points where a protruding bolt head would interfere with operation or accelerate wear. The zinc-plated finish provides a baseline level of corrosion protection appropriate for outdoor and field equipment environments. Sold individually with a minimum order quantity of 25 units.

Key Features

• 5/8-11 UNC thread for compatibility with standard inch-series tapped holes and nuts
• 1-1/2 inch overall length suits shallow to medium fastening depths in wear-surface applications
• Grade 5 steel construction meets SAE J429 mechanical property requirements
• Flat head profile allows flush or countersunk seating to protect the head from wear
• Zinc-plated finish adds corrosion resistance for outdoor and field use
• Conforms to ASME B18.9 plow bolt dimensional standard

Compatibility

Designed as an OEM-style replacement or maintenance fastener for agricultural, earthmoving, and industrial equipment requiring ASME B18.9 flat-head plow bolts with 5/8-11 UNC threading.

Installation Notes

Plow bolts are typically installed and serviced by equipment mechanics or agricultural technicians. Before replacing plow bolts on blades or bucket edges, relieve any hydraulic pressure and fully lower or support the attachment to prevent movement during service. Use appropriately rated nuts and hardened washers as specified by the equipment manufacturer. Do not substitute a lower-grade fastener in applications calling for Grade 5 hardware.
