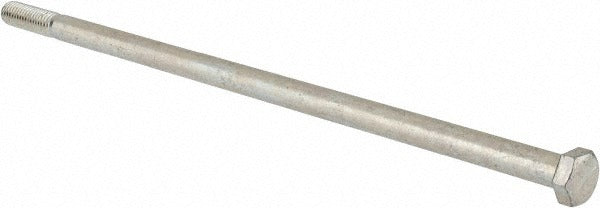

Value Collection R52001160 Hex Cap Screw 3/8-16 X 10 in Grade 5

Product Description

The VALUE COLLECTION R52001160 is a partially threaded hex head cap screw sized 3/8-16 x 10 inches, manufactured from Grade 5 steel with a zinc-plated finish. It features a Unified National Coarse (UNC) thread form and conforms to ASME B18.2.1 and SAE J429 standards. The zinc plating provides a baseline level of corrosion resistance suitable for general indoor and light outdoor fastening applications. At 0.32 pounds per piece, this fastener is intended for structural and mechanical assemblies where a recognized grade standard is required. Machinists, millwrights, pipefitters, and general contractors are the typical installers of fasteners in this class.

This screw is suited for use in mechanical assemblies, equipment mounting, structural steel connections, and general industrial fastening where a 3/8-16 UNC thread pattern and a 10-inch grip length are specified. The partial thread configuration concentrates clamping force in the unthreaded shank area, making it appropriate for joints where the bolt passes through multiple material layers before engaging a nut or tapped hole. It is sold individually with a minimum order quantity of 5 pieces.

Key Features

• 3/8-16 UNC thread size with 10-inch length under head
• Partially threaded shank for improved clamping in thick-stack joints
• Grade 5 steel construction meeting SAE J429 mechanical requirements
• Zinc-plated finish for baseline corrosion resistance
• Conforms to ASME B18.2.1 dimensional standards
• Sold per piece; minimum order quantity of 5

Compatibility

Designed as a standard inch-series hex head cap screw for general mechanical and structural assemblies requiring a 3/8-16 UNC thread and a 10-inch fastener length.

Installation Notes

Installation is performed by qualified tradespeople using standard hex wrenches or socket drive tools appropriate for a 3/8-inch hex head fastener. Always ensure the mating nut or tapped hole matches the 3/8-16 UNC thread specification before installation. Do not mix inch-series and metric fasteners in the same joint. Torque to the value specified by the equipment manufacturer or applicable structural standard for Grade 5 fasteners of this diameter.
