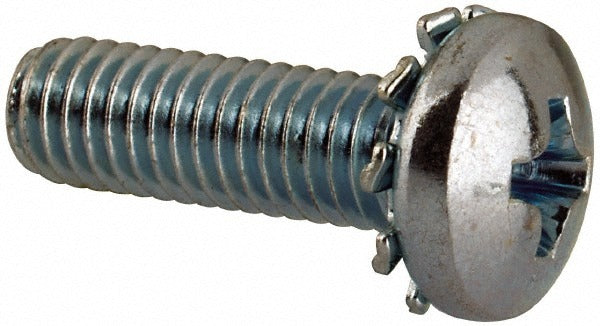

Value Collection R52000981 Machine Screw 10-32 Unf

Product Description

The VALUE COLLECTION R52000981 is a 10-32 UNF pan head machine screw designed for general-purpose fastening in mechanical, electrical, and light industrial applications. It features a Phillips drive head for compatibility with standard screwdrivers and power bits. The screw is manufactured from Grade J82 steel with a zinc-plated finish that provides basic corrosion resistance in dry indoor environments. An external tooth washer configuration is integrated to resist loosening under vibration. At 5/8 inch length under head, this screw is suited for securing panels, brackets, and components with moderate material thickness.

This machine screw is commonly used in electrical panel assembly, equipment enclosure work, and general mechanical assembly where a 10-32 UNF thread pitch is specified. The pan head profile keeps a low, broad bearing surface that distributes clamping load across the fastened material. Tradespeople in electrical, HVAC, and light mechanical trades will encounter this thread size frequently in control panels, junction boxes, and equipment mounting applications.

Key Features

• 10-32 UNF thread for compatibility with standard fine-thread tapped holes and nuts
• 5/8 inch length under head suits moderate-depth fastening applications
• Phillips drive head works with standard No. 2 Phillips bits and screwdrivers
• Grade J82 steel construction provides reliable tensile strength for light-duty fastening
• Zinc-plated finish offers basic corrosion resistance in dry indoor environments
• External tooth washer style resists fastener back-out under vibration

Compatibility

Designed as a standard 10-32 UNF machine screw replacement for use in any application requiring a pan head Phillips drive fastener with an external tooth washer feature and 5/8 inch grip length.

Installation Notes

Install using a No. 2 Phillips screwdriver or bit rated for machine screw fastening. Ensure the mating hole is properly tapped or uses a compatible 10-32 UNF nut before driving. De-energize any electrical panel or equipment before installing fasteners in live assemblies. Do not overtighten, as zinc-plated steel screws in this size range can be damaged by excessive torque applied with powered tools without a clutch setting.
