Value Collection R52000965 Machine Screw 10-24x5 in

Product Description

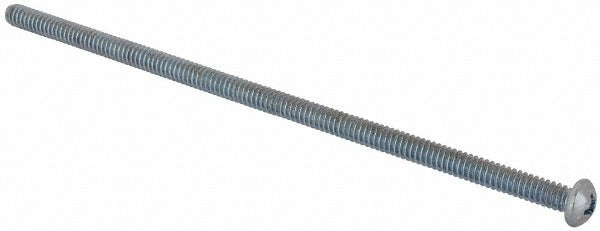

The VALUE COLLECTION R52000965 is a 10-24 x 5 inch round head Phillips machine screw designed for general industrial and mechanical fastening applications. Manufactured from steel with a zinc-plated finish, this screw meets ASME B18.6.3 and SAE J82 standards, ensuring dimensional consistency and material grade compliance. The round head profile provides a low-profile bearing surface, and the Phillips drive allows for positive bit engagement during installation. At 5 inches under-head length, this fastener is suited for applications requiring deeper thread engagement or passage through thicker material stacks. Licensed trades and maintenance professionals install these screws across a wide range of mechanical assemblies.

This screw is used in commercial and industrial settings where a standard inch-series threaded fastener is required. The 10-24 unified coarse thread pitch is widely used in light machinery, electrical enclosures, HVAC equipment panels, and general mechanical assemblies. The zinc plating provides basic corrosion resistance suitable for indoor and sheltered environments. Sold individually per package, with a minimum order quantity of 100 pieces to ensure consistent supply for production or service operations.

Key Features

• 10-24 unified coarse thread for broad compatibility with standard tapped holes
• 5 inch length under head for deep fastening through thick material stacks
• Round head profile with Phillips drive for positive bit engagement
• Steel construction with zinc-plated finish for basic corrosion resistance
• Meets ASME B18.6.3 and SAE J82 dimensional and material standards
• Grade J82 material designation for defined mechanical property compliance

Compatibility

Designed as a standard inch-series machine screw for use in any application requiring a 10-24 threaded fastener with a round head Phillips drive configuration.

Installation Notes

Install using a Phillips screwdriver or bit driver sized for a number 10 screw head. Ensure the mating tapped hole or nut is 10-24 thread pitch before driving. Do not over-torque, as over-driving can strip the Phillips recess or the tapped threads in softer base materials. Follow applicable mechanical and electrical codes, such as NEC requirements, when using fasteners in electrical enclosure assemblies.
