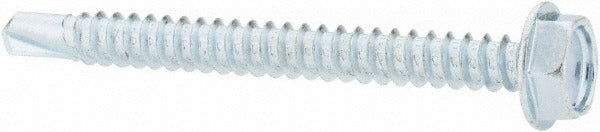

Value Collection R52000953 No.10 Self Drilling Screw 2in

Product Description

The VALUE COLLECTION R52000953 is a No. 10, self-drilling screw with a hex washer head and hex drive, designed for fast, reliable fastening in metal-to-metal and metal-to-substrate applications. The 3-point drill tip eliminates the need for a pre-drilled pilot hole, allowing the screw to cut its own thread path on contact. Made from grade 1016-1024 steel with a zinc-plated finish, it resists corrosion in typical interior and light exterior environments. The 2-inch length under head provides solid grip depth for structural and panel attachment tasks common in HVAC, electrical, and general trade work.

This screw is suited for light-gauge sheet metal assembly, HVAC ductwork, metal framing, electrical enclosures, and general trade construction applications. The hex washer head provides a wide bearing surface that distributes clamping load and reduces pull-through in thin materials. The hex drive accepts standard 5/16-inch hex driver bits, making it compatible with impact drivers and drill-drivers used daily on job sites. This SKU is sold as a single package with a minimum order quantity of 100 pieces.

Key Features

• No. 10 size with 3-point self-drilling tip — no pilot hole required
• Hex washer head provides wide bearing surface and high pull-through resistance
• Grade 1016-1024 steel construction for reliable shear and tensile strength
• Zinc-plated finish for corrosion resistance in interior and light exterior use
• 2-inch length under head suits medium-depth fastening in sheet metal and framing
• Meets AISI 1016, ASME B18.6.3, and SAE J78 standards

Compatibility

Designed as an OEM-style replacement and general-use self-drilling screw for light-gauge sheet metal, metal framing, and enclosure assembly applications where a No. 10 hex washer head fastener is specified.

Installation Notes

Installation is performed using a 5/16-inch hex driver bit with a standard drill-driver or impact driver set to a controlled torque or clutch setting to avoid stripping the head or over-driving the fastener. Power down or de-energize any electrical enclosure before fastening into panels or boxes per applicable NEC requirements. Confirm material gauge compatibility with the drill point rating before driving — 3-point tips are rated for light-gauge applications. Wear appropriate PPE including eye protection when driving self-drilling fasteners into metal substrates.
