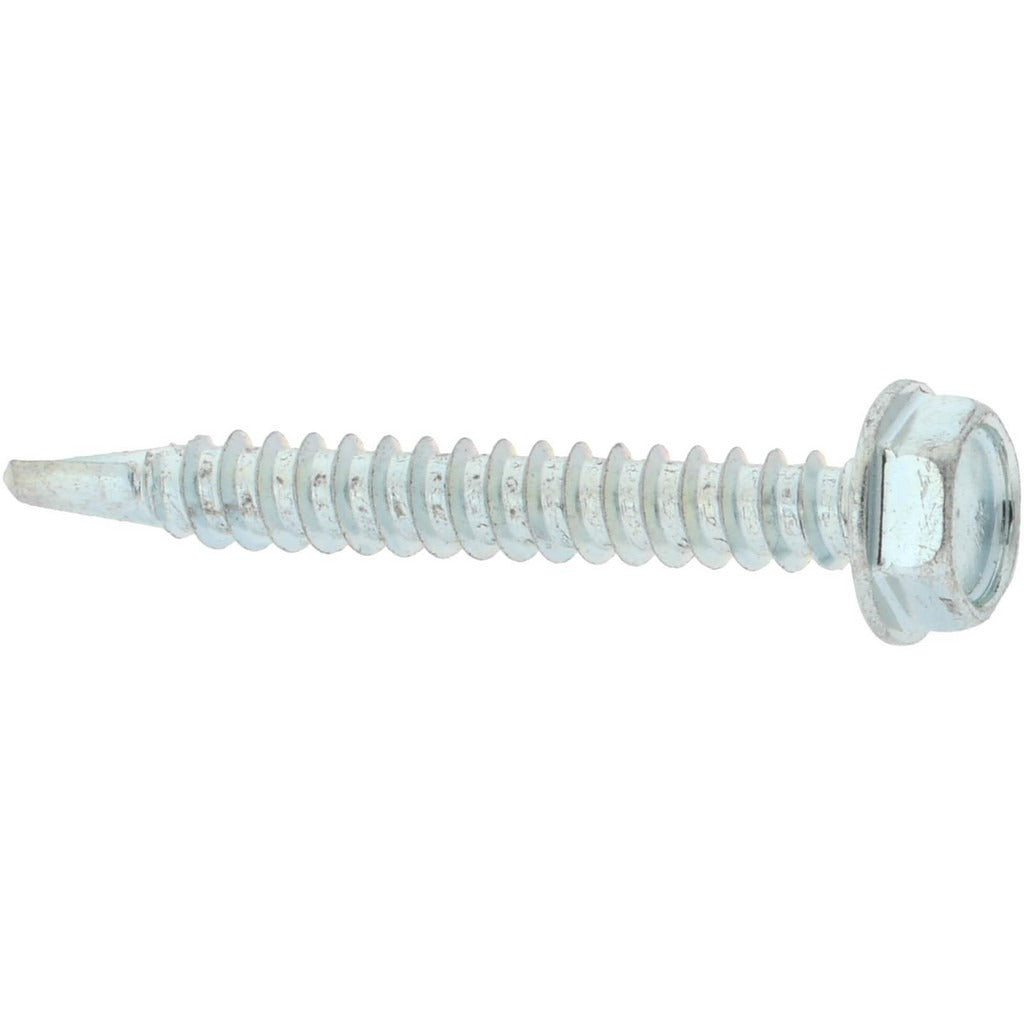

Value Collection R52000950 No. 10 Self Drilling Screw

Product Description

The VALUE COLLECTION R52000950 is a No. 10 self-drilling screw designed for fast, reliable fastening without the need for a pre-drilled pilot hole. The No. 3 drill point cuts through material cleanly while the hex washer head provides a broad bearing surface and positive torque transfer via a hex drive. Manufactured from 1016/1024 grade steel with a zinc-plated finish, this screw measures 1.5 inches in length under the head and meets AISI 1016, ASME B18.6.3, and SAE J78 standards. It is sold in minimum order quantities of 100 pieces per package.

This screw is suited for light-gauge metal fastening applications common in HVAC ductwork assembly, electrical enclosures, metal framing, and general sheet metal fabrication. The hex washer head style is compatible with standard hex driver bits and nut drivers, making it a go-to fastener for field installers and fabricators working in residential and commercial construction environments. The zinc-plated finish provides corrosion resistance in dry indoor applications.

Key Features

• No. 3 drill point eliminates need for a pre-drilled pilot hole in light-gauge sheet metal
• Hex washer head delivers a wide bearing surface and reduces fastener pull-through
• Hex drive accepts standard hex bits and nut drivers for fast installation
• 1016/1024 grade steel construction meets AISI 1016, ASME B18.6.3, and SAE J78 standards
• Zinc-plated finish provides corrosion resistance in dry indoor environments
• Inch measurement system; 1.5 inches length measured under the head

Compatibility

Designed as an OEM-style replacement and general-use fastener for No. 10 self-drilling screw applications in light-gauge steel sheet metal assembly and fabrication.

Installation Notes

Installation is performed by sheet metal workers, HVAC technicians, electricians, and general contractors using a hex-drive bit or nut driver in a power drill or impact driver. Ensure the substrate material thickness is appropriate for a No. 3 drill point before driving. Do not overdrive the screw, as this can strip the drill point or damage the fastened material. Always wear appropriate PPE when working with self-drilling fasteners and power tools.
