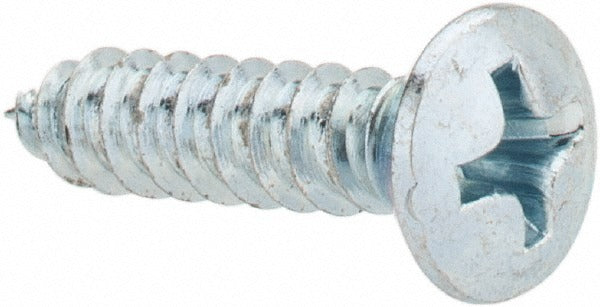

Value Collection R52000893 No. 8 Oval Head Phillips Screw

Product Description

The VALUE COLLECTION R52000893 is a No. 8 oval head Phillips drive sheet metal screw manufactured from AISI 1016 steel with a zinc plated finish. At 0.75 inches overall length, this fastener is designed for secure sheet metal joining in light fabrication, HVAC ductwork, electrical enclosures, and general sheet metal applications. The oval head provides a low-profile, finished appearance above the surface while the Phillips drive allows for fast installation with standard hand or power tools. It conforms to ANSI/ASME B18.6.4, ASME B18.6.3, and SAE J933 dimensional and performance standards. Installed by HVAC technicians, electricians, and sheet metal workers.

This screw is suited for residential and light commercial applications where a No. 8 sheet metal fastener is specified. Common uses include attaching duct covers, electrical junction box knockouts, control panels, and thin gauge metal brackets. The zinc plating provides baseline corrosion resistance for indoor and protected outdoor installations. This item is sold individually per package with a minimum order quantity of 100 units.

Key Features

• Oval head profile delivers a finished, low-profile appearance flush to the work surface
• No. 2 Phillips drive compatible with standard power and hand screwdrivers
• AISI 1016 steel construction meets Grade 1016-1024 material requirements
• Zinc plated finish for corrosion resistance in typical indoor environments
• Meets ANSI/ASME B18.6.4, ASME B18.6.3, and SAE J933 standards
• 0.75 inch overall length suits light-gauge sheet metal fastening applications

Compatibility

Designed as a standard No. 8 oval head Phillips sheet metal screw for use wherever ANSI/ASME B18.6.4 or ASME B18.6.3 compliant fasteners are specified in light-gauge sheet metal assemblies.

Installation Notes

Sheet metal screws of this type are installed by HVAC technicians, electricians, and sheet metal fabricators using a No. 2 Phillips bit with a hand screwdriver or power driver set to a low torque clutch setting to avoid stripping the drive or overdriving into thin gauge metal. Pre-drilling a pilot hole is recommended for heavier gauge material. De-energize any electrical equipment before fastening into enclosures or panels, and follow applicable NEC or local codes for work inside electrical assemblies.
