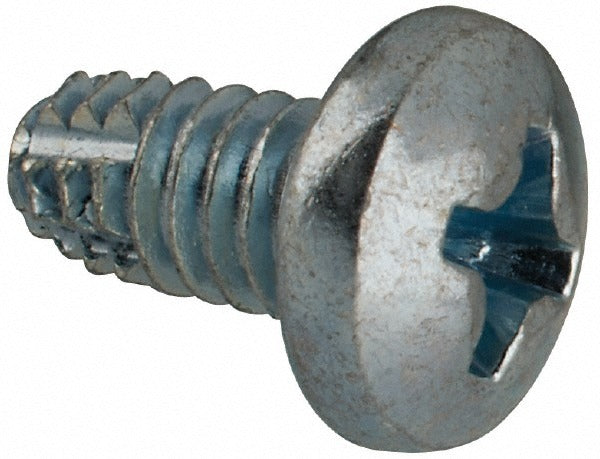

Value Collection R52000877 8-32 Unc Thread Cutting Screw

Product Description

The VALUE COLLECTION R52000877 is an 8-32 UNC thread cutting screw designed for fast, reliable fastening in metal applications. The pan head profile and No. 2 Phillips drive make it compatible with standard hand and power tools. At 5/16 inches length under head, this screw is sized for light-gauge sheet metal and thin-stock assemblies common in HVAC, electrical enclosures, and mechanical equipment panels. The Type F point cuts threads directly into pre-drilled or punched holes, eliminating the need for a separate tapping operation. Constructed from AISI 1016-1024 steel with a zinc-plated finish, it provides reliable corrosion resistance for indoor mechanical installations.

This screw is suited for light commercial and residential trade applications where a self-threading fastener is needed in sheet metal, thin steel brackets, or equipment enclosures. HVAC technicians, electricians, and mechanical contractors commonly use this style of screw when securing access panels, junction box covers, duct flanges, and control board mounting brackets. It is ordered and packaged in multiples of 100, making it practical for service vans and shop stock.

Key Features

• Type F point cuts threads on installation, no pre-tapping required
• Pan head profile distributes clamping load across the work surface
• No. 2 Phillips drive works with standard screwdrivers and power bits
• Zinc-plated finish resists corrosion in indoor mechanical environments
• AISI 1016-1024 steel construction meets ASME B18.6.3, ASME B18.6.4, and SAE J933 standards
• Sold in multiples of 100 for efficient job-site and shop stocking

Compatibility

Designed as a standard 8-32 UNC thread cutting fastener suitable for light-gauge steel panels, equipment enclosures, and mechanical assemblies where a Type F self-threading screw is specified.

Installation Notes

Installation should be performed by a qualified tradesperson using a No. 2 Phillips bit and a calibrated torque screwdriver or power driver set to an appropriate clutch setting to avoid stripping the newly cut threads. Ensure the base material is properly drilled or punched to the recommended pilot hole diameter for 8-32 thread cutting screws before driving. Do not over-torque, as thread cutting screws in thin-gauge steel can strip the formed threads if driven beyond seating. Follow applicable mechanical and electrical codes when securing panels on energized equipment, and de-energize circuits before opening enclosures.
