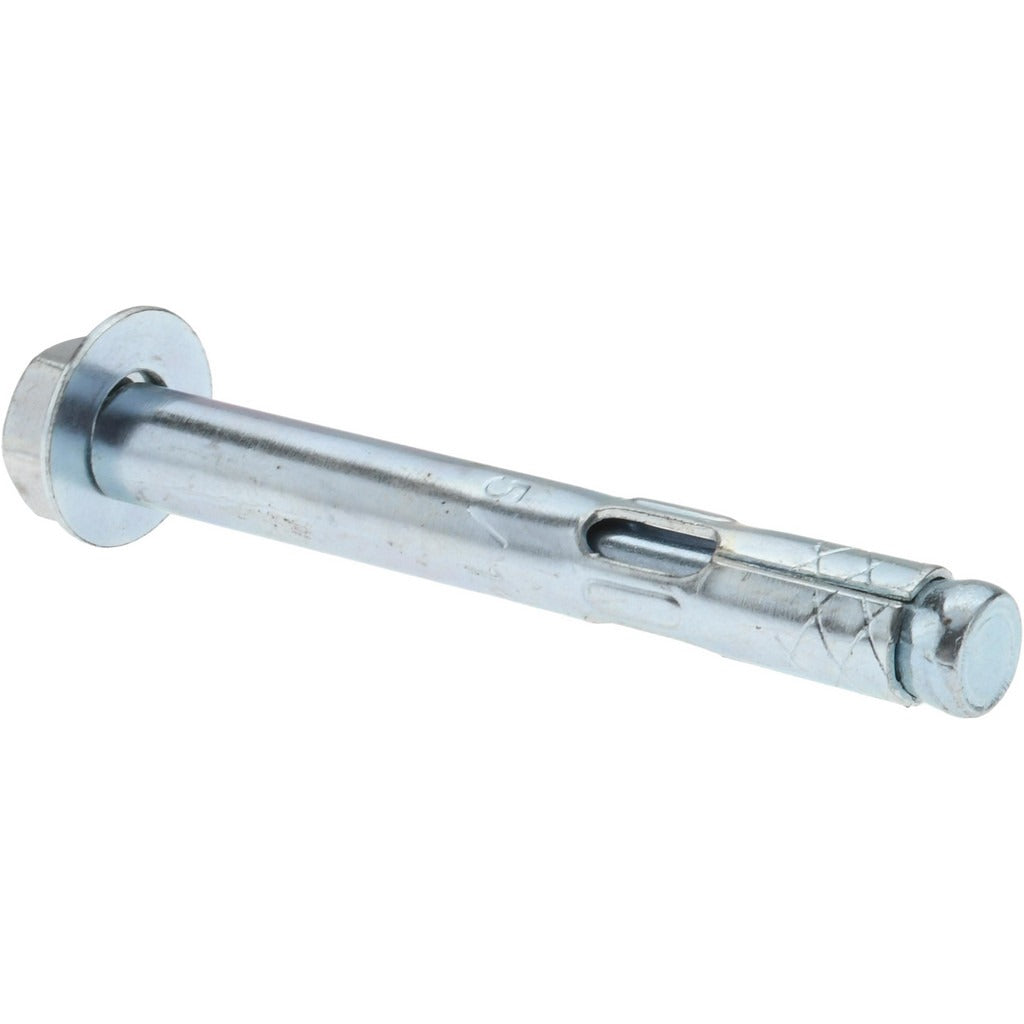

Value Collection R50000365 Concrete Sleeve Anchor 5/16 in

Product Description

The VALUE COLLECTION R50000365 is a concrete sleeve anchor designed for fastening into solid concrete, block, and masonry substrates. Measuring 5/16 inches in diameter and 2-1/2 inches overall length, this anchor requires a minimum embedment depth of 1 inch and a matching 5/16-inch drill bit for installation. The anchor body is manufactured from steel with a zinc finish coating for corrosion resistance. The hex nut head style and hex drive make it compatible with standard wrenches and sockets, allowing for efficient installation in production or field settings.

This sleeve anchor is suited for light- to medium-duty anchoring applications in residential and commercial construction. Typical uses include securing electrical conduit hangers, equipment bases, structural brackets, and framing components to poured concrete floors, walls, or ceilings. It is also used by HVAC and plumbing trades for attaching pipe supports and equipment mounting hardware to concrete structures. This anchor is sold in minimum order quantities of 100 units, making it appropriate for contractors and tradespeople who require job-lot quantities.

Key Features

• 5/16-inch diameter with 2-1/2-inch overall length for shallow to mid-depth anchoring
• 1-inch minimum embedment depth for solid concrete and masonry applications
• Steel construction with zinc finish coating for corrosion resistance
• Hex nut head style accepts standard wrenches and sockets
• Requires a 5/16-inch carbide-tipped masonry drill bit for hole preparation
• Sold in job-lot quantities suitable for multi-anchor installations

Compatibility

Designed as an OEM-style replacement and general-use fastener for concrete and masonry anchoring applications requiring a 5/16-inch diameter sleeve anchor with hex nut head drive.

Installation Notes

Installation is typically performed by general contractors, electricians, plumbers, or HVAC mechanics working with concrete or masonry substrates. Drill a clean hole to the required depth using a 5/16-inch carbide-tipped masonry bit and blow out dust before inserting the anchor. Tighten the hex nut to expand the sleeve against the hole walls — do not overtighten, as this can compromise holding strength in the base material. Follow applicable building codes and anchor manufacturer load tables for structural applications.
