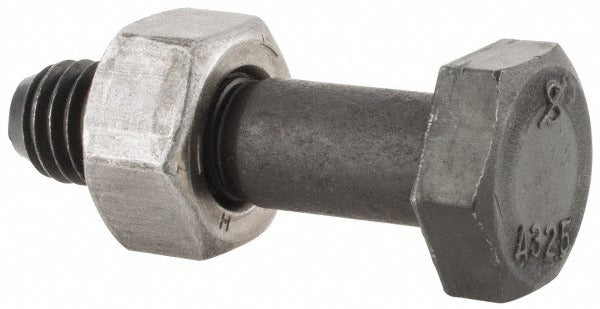

Value Collection R50000214 Hex Head Bolt 1/2-13 2in A325

Product Description

The VALUE COLLECTION R50000214 is a 1/2-13 hex head bolt designed for structural and mechanical fastening applications. Manufactured from Grade A325 steel to ASTM A325 standards, this bolt measures 2 inches in length under the head and features partial threading along the shank. The uncoated finish leaves the steel bare, making it suitable for applications where coating adds unacceptable dimensional variation or where field coating will be applied. Structural ironworkers, millwrights, and general contractors commonly install this fastener in steel-to-steel connections governed by structural codes.

This bolt is used in heavy structural assembly, steel frame construction, and industrial machinery mounting where ASTM A325 compliance is required. The 1/2-13 UNC thread designation indicates a coarse-thread profile, which seats quickly and resists stripping in typical structural steel clearance holes. The partial threading leaves a smooth bearing shank section, which carries shear loads more effectively than a fully threaded fastener in many structural joint configurations.

Key Features

• ASTM A325 certified structural hex head bolt
• 1/2-13 UNC coarse thread for fast engagement and reliable seating
• 2-inch length under head suits standard structural connection thicknesses
• Partially threaded shank provides a smooth bearing section for shear-critical joints
• Uncoated finish for use where bare steel or field-applied coating is required
• Grade A325 steel meets structural bolt strength requirements per ASTM standards

Compatibility

Designed as an OEM-style structural fastener for use in steel-to-steel bolted connections requiring ASTM A325 compliance. No specific compatible model or assembly information was provided in the product data.

Installation Notes

Installation of structural bolts should be performed by qualified ironworkers or mechanics familiar with AISC and applicable building code requirements. Always power down or de-energize any adjacent mechanical or electrical systems before working in close proximity to live equipment. Use calibrated torque wrenches or approved turn-of-nut methods per the applicable structural connection specification. Do not reuse structural bolts that have been fully tensioned unless the fastener standard explicitly permits it.
