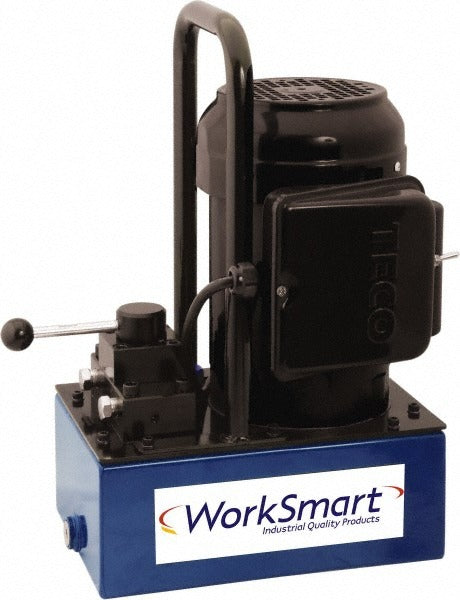

Value Collection PS-MH-HPC1-171 Electric Hydraulic Pump

Product Description

The VALUE COLLECTION PS-MH-HPC1-171 is an electric hydraulic pump equipped with a 3-way, 3-position valve designed for single-acting cylinder applications. The pump delivers a maximum operating pressure of 10000 psi and carries a 1-gallon usable oil capacity, making it well suited for demanding hydraulic work in industrial and field service environments. Powered by a 1/2 horsepower motor, it provides reliable fluid power for controlled advance, hold, and retract functions. The reservoir holds 300.3 cubic inches of oil. Licensed hydraulic technicians and industrial maintenance professionals are the primary installers and operators of this unit.

This pump is intended for use with single-acting hydraulic cylinders in applications requiring precise three-position valve control. The advance, hold, and retract operating functions make it appropriate for pressing, clamping, lifting, and tensioning operations in manufacturing, construction, and maintenance settings. Its compact footprint relative to output pressure suits both shop bench use and mobile service setups where a self-contained electric pump is needed.

Key Features

• 3-way, 3-position valve with advance, hold, and retract cylinder operating functions
• Maximum pressure rating of 10000 psi for high-force single-acting cylinder work
• 1-gallon usable oil capacity with a 300.3 cubic inch reservoir
• 1/2 horsepower electric motor drive
• Single-acting actuation compatible with a wide range of hydraulic cylinders
• Self-contained unit weighing 82.72 pounds for stable stationary use

Compatibility

Designed for use with single-acting hydraulic cylinders. No specific compatible model numbers or system families were provided in the product data.

Installation Notes

Installation and operation should be performed by qualified hydraulic technicians familiar with high-pressure fluid power systems. Always depressurize the hydraulic circuit and disconnect electrical power before servicing connections, hoses, or valve components. Verify that all fittings, hoses, and connected cylinders are rated for a minimum of 10000 psi before energizing the pump. Follow applicable OSHA and ANSI hydraulic safety standards during setup and use.
