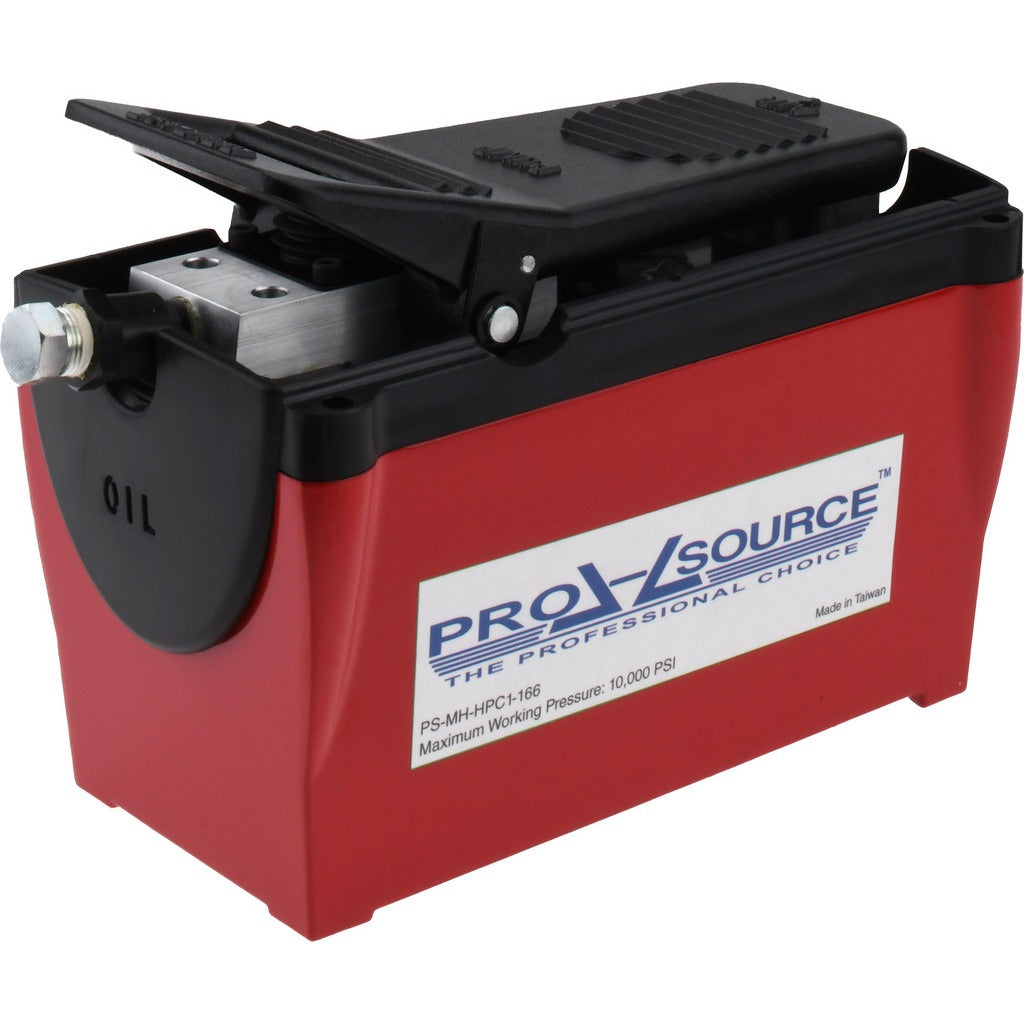

Value Collection PS-MH-HPC1-166 Air-hydraulic Pump

Product Description

The VALUE COLLECTION PS-MH-HPC1-166 is a single-acting air-hydraulic pump rated to 10,000 psi, designed to power hydraulic cylinders in pressing, lifting, clamping, and force-application work. The pump operates on compressed air to build and hold hydraulic pressure, with a cylinder operating sequence of advance, hold, and retract. It carries a usable oil capacity of 122.1 cubic inches and a total reservoir capacity of 134.2 cubic inches. Weighing 22 pounds, it is sized for both shop and field use. Hydraulic technicians, maintenance mechanics, and industrial service professionals are the typical installers and operators of this pump.

This pump is suited for single-acting hydraulic cylinder applications in industrial maintenance, fabrication, and heavy equipment service environments. The advance, hold, and retract operating sequence makes it appropriate for tasks that require controlled pressure application and a defined dwell period before releasing force. Its air-driven actuation reduces operator fatigue compared to manual hand pumps, and the compact footprint at 12.64 inches long, 6.73 inches wide, and 8.66 inches tall allows it to work in space-constrained service bays or maintenance cells.

Key Features

• 10,000 psi maximum pressure rating for high-force hydraulic applications
• Single-acting design compatible with single-acting hydraulic cylinders
• Advance, hold, and retract cylinder operating sequence
• Air-driven actuation for consistent, repeatable pressure delivery
• 122.1 cubic inch usable oil capacity with 134.2 cubic inch total reservoir
• Compact dimensions suitable for shop and field deployment

Compatibility

Designed for use with single-acting hydraulic cylinders. No specific cylinder model compatibility was provided in the product data; verify cylinder pressure rating and port thread specifications before connecting.

Installation Notes

Installation and operation should be performed by qualified hydraulic technicians or maintenance mechanics familiar with high-pressure hydraulic systems. Before connecting or disconnecting hydraulic lines, relieve all system pressure and shut off the air supply to the pump. Inspect all fittings, hoses, and connections for pressure rating compatibility at 10,000 psi before pressurizing the system. Follow applicable workplace safety standards and equipment manufacturer guidelines for hydraulic fluid type and system cleanliness.
