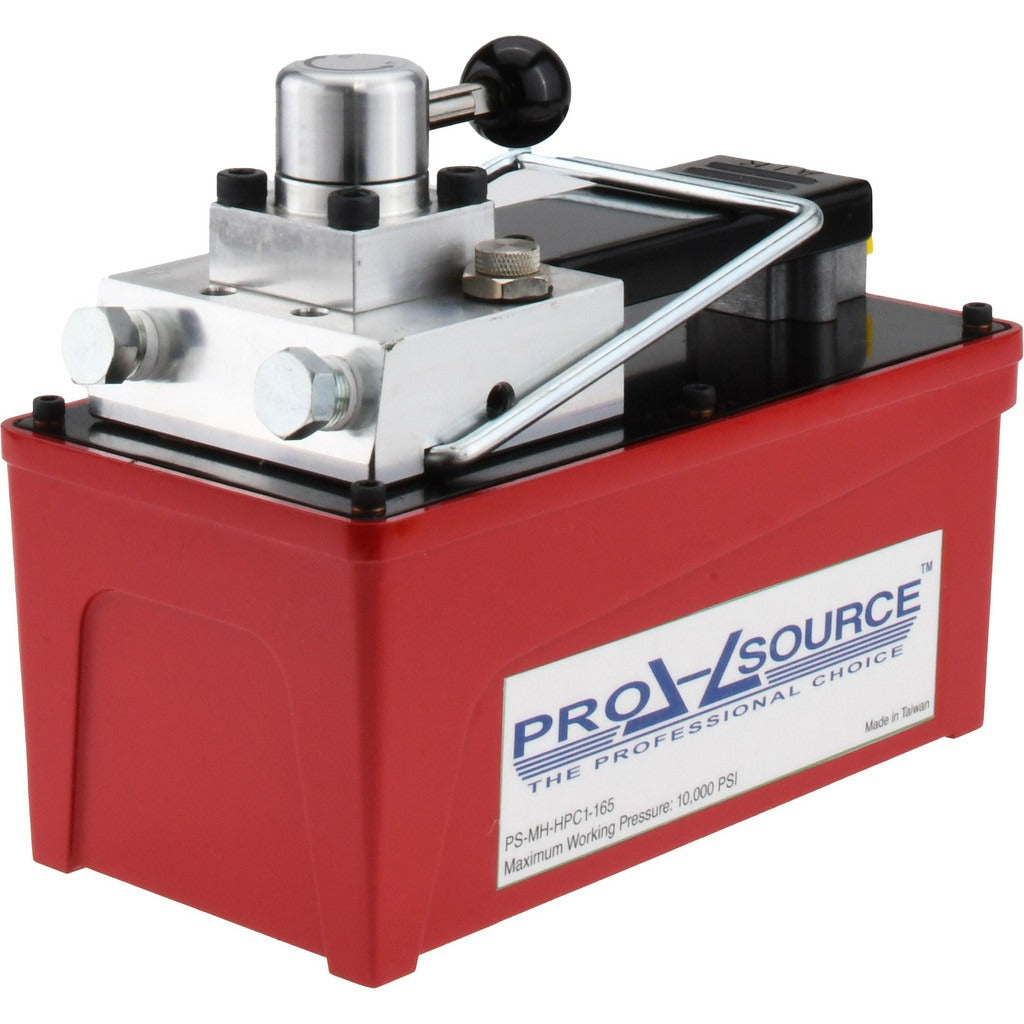

Value Collection PS-MH-HPC1-165 Air-hydraulic Pump

Product Description

The VALUE COLLECTION PS-MH-HPC1-165 is a double-acting air-hydraulic pump rated to 10,000 psi, designed for use with double-acting hydraulic cylinders in industrial and mechanical service applications. Driven by compressed air, it delivers controlled hydraulic pressure through three operating functions: advance, hold, and retract. With a reservoir capacity of 100.7 cubic inches and a usable oil capacity of 91.5 cubic inches, the pump maintains adequate fluid volume for sustained cycle work. Weighing 20.9 pounds, it is portable enough for shop or field use. Hydraulic technicians, millwrights, and heavy equipment service professionals are the typical installers and operators of this class of pump.

This pump suits applications where a double-acting hydraulic cylinder must be powered through a full extend-and-retract cycle under high pressure. Typical use cases include hydraulic press operations, structural alignment, bearing and bushing installation and removal, and general industrial maintenance tasks requiring controlled high-force output. The air-over-hydraulic design reduces operator fatigue compared to manual hand pumps while maintaining precise pressure control at the cylinder. It is suited for both shop bench use and portable field service where a compressed air supply is available.

Key Features

• 10,000 psi maximum pressure rating for high-force hydraulic applications
• Double-acting operation supports advance, hold, and retract cylinder functions
• Air-hydraulic actuation reduces manual effort and enables consistent pressure delivery
• 100.7 cubic inch reservoir capacity with 91.5 cubic inches of usable oil volume
• Compact footprint measuring 10.35 inches long, 5.35 inches wide, and 7.99 inches tall
• Portable at 20.9 pounds for shop or field deployment

Compatibility

Designed for use with double-acting hydraulic cylinders requiring a high-pressure air-hydraulic power source rated to 10,000 psi.

Installation Notes

Installation and operation should be performed by qualified hydraulic technicians or maintenance professionals familiar with high-pressure fluid power systems. Before connecting or disconnecting hydraulic lines, relieve all system pressure and ensure the air supply is isolated and depressurized. Use hydraulic fittings and hose assemblies rated for 10,000 psi service. Follow all applicable safety standards for high-pressure hydraulic equipment during setup and operation.
