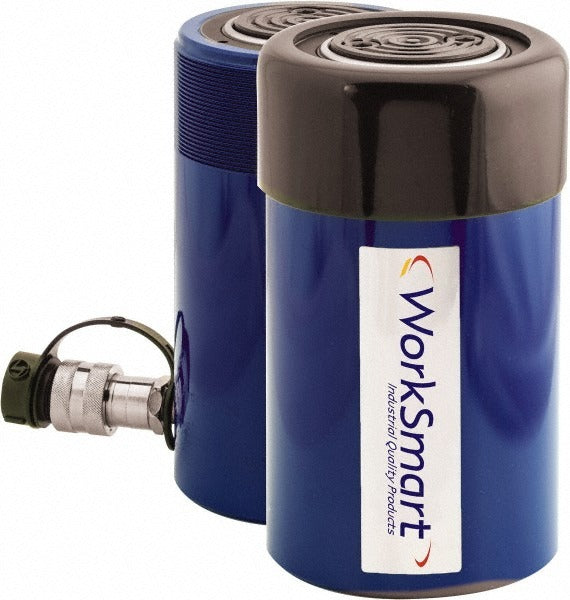

Value Collection PS-MH-HPC1-128 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-128 is a single-acting portable hydraulic cylinder designed for heavy-duty lifting, pressing, and positioning applications in the field or shop. Single-acting operation means hydraulic pressure extends the ram while a spring or gravity returns it, keeping the design straightforward and reliable. The cylinder carries an oil capacity of 44.57 cubic inches and features a rod diameter of 3.15 inches, supporting substantial load demands. With a lowered height of 8.94 inches and a maximum extended height of 13.00 inches, this unit offers a usable stroke in a compact envelope. At 44.26 pounds, it is a substantial piece of equipment intended for professional use by hydraulic service technicians, millwrights, mechanics, and maintenance crews.

This portable hydraulic cylinder suits applications where a self-contained or bottle-jack-style ram is required without a fixed mounting. Typical uses include structural lifting, machinery alignment, bearing and bushing pressing, and vehicle frame work. The collar thread specification of 5-12 allows connection to standard hydraulic fittings and couplers commonly found on portable pump units. It is appropriate for both shop bench use and controlled field service environments where a compact, high-force cylinder is needed.

Key Features

• Single-acting design: hydraulic pressure extends the rod; retraction is by spring or gravity return
• 3.15-inch rod diameter supports high radial and axial load capacity
• 44.57 cubic inch oil capacity provides adequate stroke volume for the full extension range
• Compact lowered height of 8.94 inches suits tight clearance setups
• Collar thread of 5-12 for connection to standard portable hydraulic pump couplers
• Weighs 44.26 pounds, built for durability in demanding service environments

Compatibility

Designed for use with single-acting portable hydraulic pump units and hand pumps that accept a 5-12 collar thread connection. No specific system or model compatibility data was provided by the manufacturer for this part.

Installation Notes

Installation and operation should be performed by qualified hydraulic technicians or mechanics familiar with hydraulic cylinder safety practices. Always relieve all hydraulic pressure from the system before connecting or disconnecting the cylinder. Ensure the work surface and load are stable and rated for the forces involved before applying pressure. Follow applicable ANSI and OSHA guidelines for hydraulic lifting equipment when using this cylinder in lifting applications.
