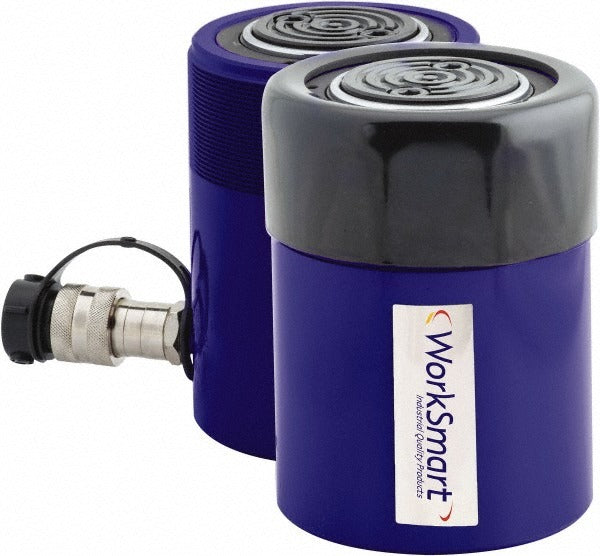

Value Collection PS-MH-HPC1-127 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-127 is a single-acting portable hydraulic cylinder designed for lifting, pressing, and load-holding applications in industrial and field maintenance environments. With an oil capacity of 21.97 cubic inches and a rod diameter of 3.15 inches, this cylinder delivers substantial force output in a portable form factor. The lowered height of 6.93 inches and maximum extended height of 8.94 inches make it suited for confined-space lifting tasks. At 35.9 pounds, it is heavy-duty but still field-portable. Licensed mechanics, millwrights, and hydraulic service technicians are the primary installers and operators of this equipment.

This cylinder is used in heavy equipment repair, structural lifting, and maintenance operations where a compact, single-acting hydraulic unit is required. Single-acting operation means hydraulic pressure extends the ram and gravity or an external load retracts it. The collar thread specification of 5-12 allows it to interface with standard hydraulic saddles and load-bearing fixtures commonly used in shop and field environments.

Key Features

• Single-acting cylinder extends under hydraulic pressure and retracts by gravity or load return
• 3.15-inch rod diameter provides a broad bearing surface for stable load contact
• 21.97 cubic inch oil capacity supports full stroke operation with compatible hand or air pumps
• Lowered height of 6.93 inches suits tight clearance lifting scenarios
• Collar thread of 5-12 for compatibility with standard hydraulic accessories and saddles
• Weighs 35.9 pounds for portability between job sites

Compatibility

Designed for use with single-acting hydraulic pump systems; verify that the pump outlet pressure rating and hose coupler thread pattern match the cylinder inlet before connecting.

Installation Notes

Installation and operation should be performed by qualified hydraulic service technicians or licensed mechanics familiar with hydraulic safety practices. Always depressurize the hydraulic circuit fully before connecting or disconnecting the cylinder. Ensure the load is properly supported and the cylinder is positioned on a stable, level surface before applying pressure. Never exceed the rated capacity of the cylinder, pump, or hose assembly in use.
