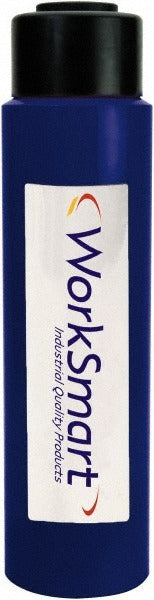

Value Collection PS-MH-HPC1-126 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-126 is a single-acting portable hydraulic cylinder designed for heavy-duty lifting and pressing applications in industrial and field service environments. It operates on a single-acting principle, meaning hydraulic pressure extends the plunger while a spring or gravity returns it. With an oil capacity of 53.67 cubic inches and a rod diameter of 2.24 inches, this cylinder delivers substantial force output in a portable form factor. A lowered height of 15.24 inches and a maximum extended height of 23.51 inches define its working stroke range. Licensed hydraulic technicians, millwrights, and heavy equipment service professionals are the typical end users.

This cylinder is suited for maintenance, repair, and manufacturing operations where portability is required alongside high-force hydraulic output. Typical applications include machinery alignment, structural lifting, press-fit assembly, and equipment repair in both shop and field settings. The plunger internal thread size of 1-1/2-16 and collar thread of 3-5/16-12 allow attachment of standard hydraulic tooling adapters and extensions, expanding its utility across multiple job configurations.

Key Features

• Single-acting cylinder design for straightforward hydraulic extension and gravity or spring return
• 53.67 cubic inch oil capacity supports high-force output across a full working stroke
• 2.24-inch rod diameter for robust load handling under heavy-duty conditions
• Plunger internal thread size of 1-1/2-16 for compatible tooling attachment
• Collar thread of 3-5/16-12 for secure mounting and adapter fitment
• Portable form factor with lowered height of 15.24 inches for use in confined spaces

Compatibility

Designed as an OEM-style portable single-acting hydraulic cylinder suitable for use with standard hydraulic hand pumps and power units that deliver compatible operating pressure and flow.

Installation Notes

Installation and operation of hydraulic cylinders of this type should be performed by qualified hydraulic technicians or millwrights familiar with high-pressure hydraulic systems. Before connecting or disconnecting hydraulic lines, relieve all system pressure and ensure the load is properly supported by independent means. Use thread sealant and fittings rated for the system operating pressure on all threaded connections. Follow applicable ASME and OSHA standards for hydraulic lifting operations.
