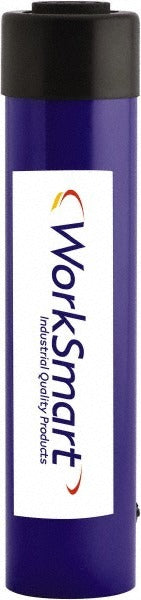

Value Collection PS-MH-HPC1-123 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-123 is a single-acting portable hydraulic cylinder designed for lifting, pressing, and forcing applications in industrial and field service environments. Single-acting operation means hydraulic pressure extends the plunger, while gravity or an external load returns it. The cylinder holds 52.12 cubic inches of oil and features a 2.24-inch rod diameter, giving it the bore and stroke geometry suited for high-force work in tight or remote locations. A plunger internal thread of 1-1/2-16 and a collar thread of 3-5/16-12 allow attachment of standard hydraulic tooling or load-bearing saddles. Millwrights, maintenance technicians, and hydraulic equipment specialists are the typical installers.

This cylinder is well suited for maintenance, repair, and construction tasks where a self-contained or pump-fed hydraulic circuit is required. Lowered height of 14.72 inches and maximum extended height of 24.84 inches define the working envelope. At 31.79 pounds, the unit is portable enough for field use while still delivering the structural mass expected of heavy-duty hydraulic tooling. It fits into portable hydraulic pump setups commonly used in structural alignment, machinery positioning, and heavy equipment service.

Key Features

• Single-acting actuation — pressure extends plunger, load or gravity retracts
• 52.12 cubic inch oil capacity supports extended stroke under load
• 2.24-inch rod diameter for high-force output in compact form
• Plunger internal thread 1-1/2-16 and collar thread 3-5/16-12 for tooling attachment
• Lowered height of 14.72 inches and maximum height of 24.84 inches
• Portable design at 31.79 pounds for field and shop use

Compatibility

Designed as an OEM-style replacement or direct-use portable hydraulic cylinder compatible with standard single-acting hydraulic pump circuits using conventional hydraulic coupling fittings.

Installation Notes

Installation and operation should be performed by qualified hydraulic technicians or millwrights familiar with hydraulic circuit safety. Before connecting or disconnecting the cylinder, relieve all pressure from the hydraulic circuit and ensure the pump is shut off. Verify that thread connections at the plunger and collar are clean and fully engaged before pressurizing. Follow applicable ASME and workplace safety standards for hydraulic tooling rated at the system operating pressure.
