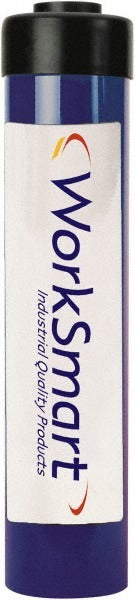

Value Collection PS-MH-HPC1-118 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-118 is a single-acting portable hydraulic cylinder designed for controlled linear force applications in industrial, construction, and maintenance environments. It delivers a 44.02 cubic inch oil capacity and a 1.63-inch rod diameter, making it suited for heavy lifting, pressing, and pushing tasks where a compact but high-force tool is required. The cylinder operates on single-acting actuation, meaning hydraulic pressure extends the plunger and gravity or an external load retracts it. At 27.39 pounds, it is portable enough for field service work while still handling demanding load requirements. Licensed mechanics, millwrights, and industrial maintenance technicians are the typical end users.

This hydraulic cylinder fits applications where a portable, standalone hydraulic unit is needed without a permanently mounted system. Typical scenarios include equipment alignment, structural lifting, die and bearing work, and maintenance tasks on heavy machinery. Its collar thread and plunger internal thread allow attachment of extensions or load-bearing fixtures. The cylinder is appropriate for both shop and field use where access to a fixed hydraulic press is not available.

Key Features

• Single-acting actuation for straightforward extend-under-pressure operation
• 44.02 cubic inch oil capacity supports sustained stroke under load
• 1.63-inch rod diameter for high column-load stability
• Plunger internal thread size 1-8 with 1.00-inch thread length for accessory attachment
• Collar thread 2-3/4-16 for secure fixture or extension coupling
• Lowered height of 18.66 inches and maximum extended height of 32.68 inches

Compatibility

Designed as a portable single-acting hydraulic cylinder suitable for use with compatible single-acting hydraulic hand pumps and power units that match the cylinder port and pressure rating.

Installation Notes

Installation and operation should be performed by qualified mechanics or hydraulic technicians familiar with hydraulic system safety. Before connecting or disconnecting the cylinder, relieve all hydraulic pressure in the circuit and ensure the load is fully supported by independent means. Inspect the port connections, collar thread, and plunger thread for damage or contamination before use. Follow applicable ASME and ANSI safety standards for hydraulic tooling and never exceed the rated capacity of the cylinder.
